LTE Wide Band Flex Antenna (698–3000MHz)

SKU: WRL-22527 Brand: Sparkfun
This easy-to-install durable, polymer antenna operates on greater than 45% efficiency on LTE bands from 698MHz to 3000MHz...
$19.25 AUD, inc GST
$17.50 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

  • 10-25 $16.97 (exc GST)
  • 25+ $16.63 (exc GST)
- +

2 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

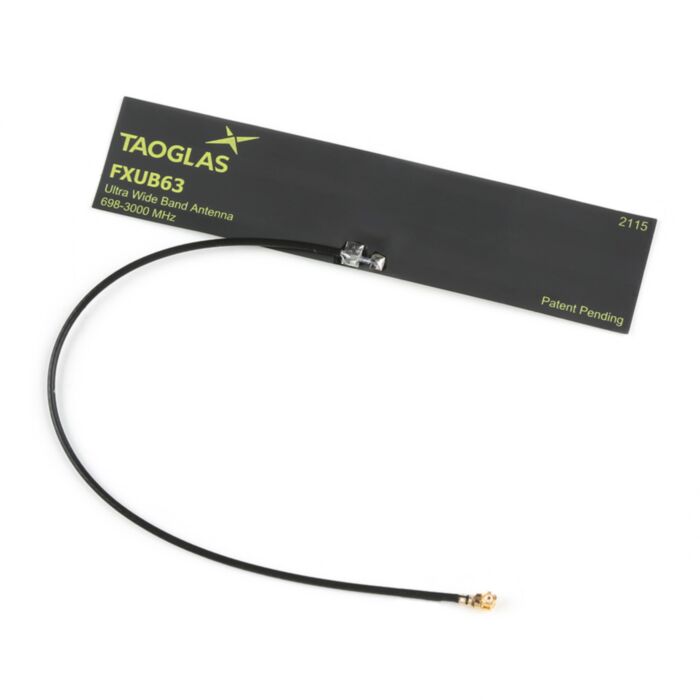

This is an Extremely Efficient, Wide Band, Flexible LTE Antenna with a small footprint. This easy to install durable, flexible polymer antenna operates on greater than 45% efficiency on LTE bands from 698 – 3000MHz. For use in a wide array of applications which need LTE connectivity, including home automation, emergency services, automotive, healthcare, HD video, vending machines, digital signage, IoT gateways, smart grid, agriculture.

This antenna measures at 96mm x 21mm x 0.2mm with an adhesive backing. The ground-independent antenna is delivered with a 150mm, ø1.37 coaxial cable and a U.FL compatible connector for easy installation.

Features

  • Antenna Type: Cellular
  • Mechanical Style: Flex PCB
  • Gain: 5
  • Impedance: 50
  • Minimum Operating Temperature: -40°C
  • Maximum Operating Temperature: 85°C
  • Mounting Style: Adhesive
  • Termination Style: Connector
  • Antenna Connector Type: IPEX MHFI / U.FL
  • Cable Type: 1.37 Coax
  • Connector Body Style: Straight
  • Polarity: Linear
  • Frequency Range: 698MHz To 2690MHz
  • Connector Polarity: Normal
  • Cable Length: 150mm
  • VSWR: 3:1
  • Length: 96mm
  • Width: 21mm
  • Height: 0.2mm
  • Weight: 2g
