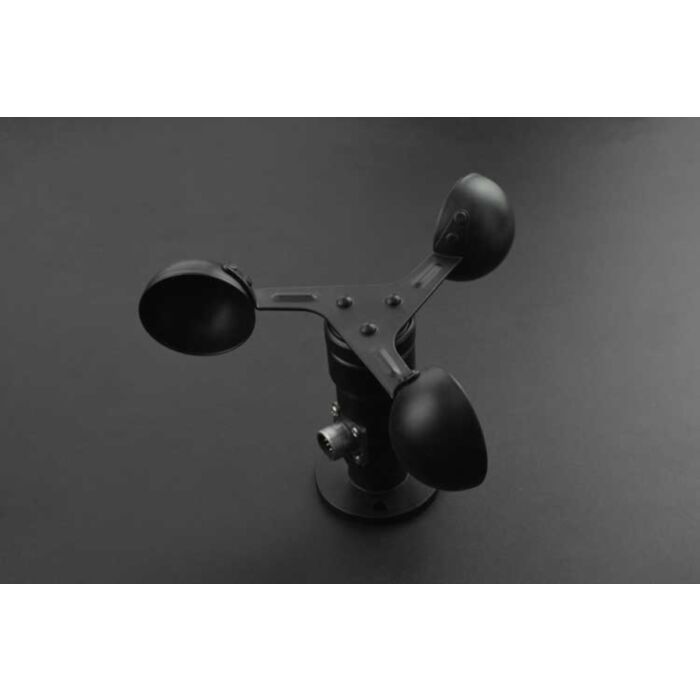

RS485 Wind Speed Transmitter

SKU: SEN0483 Brand: DFRobot

This wind speed sensor is a professional meteorological instrument used to measure horizontal wind speed within 0~32.4m/s. It integrates a hall sensor inside. The...

$85.55 AUD, inc GST

$77.77 AUD, exc GST

Available with a lead time
Expect dispatch between Mar 24 and Mar 26

Quantity Discounts:

6-12 $74.66 (exc GST)
12+ $72.33 (exc GST)

Recommended Essentials:

Industrial USB to RS485 Converter

$18.90

This wind speed sensor is a professional meteorological instrument used to measure horizontal wind speed within 0~32.4m/s. It integrates a hall sensor inside. The shell and wind cups are made of aluminum alloy material and use special mold precision die casting process, featuring small dimension tolerance and high surface accuracy. The sensor internal circuit is protected, which makes the sensor have the properties of high strength, weather resistance, anti-corrosion, and waterproof. The cable connector adopts corrosion-resistant military plug that ensures the long service life of the product.

A low-inertia anemometer is used to sense the wind speed. When the wind blows the wind cup to rotate, it drives the axle magnet to rotate through the shaft, then the accurate wind speed information can be obtained after calculation. This high-cost performance sensor can be widely used in meteorology, ocean, environment, airports, ports, laboratories, industry, agriculture and transportation.

If you are using this wind speed sensor alongside the RS485 Wind Direction Transmitter you will need to change the address on one unit. You can find instructions on how to change the address on our forum.

Dimension

Features

Compact size, easy to install, portable
The surface of aluminum alloy material is sprayed with plastic, anti-corrosion and high-temperature resistance
Quality bearings, low resistance, low start-up wind speed
High measurement accuracy, wide range, good stability
Reasonable structure design, good appearance quality
Long signal transmission distance, strong anti-interference ability

Specification

Measuring Range: 0~32.4m/s
Start-Up Wind Speed: 0.2-0.4m/s
Accuracy: ±0.3m/s
Lead Length: 2.5m/98.43”
Power Voltage: 7-24V
Communication Protocol: RS485 interface Modbus protocol

Documents

Product wiki

Shipping List

RS485 Wind Speed Transmitter x1
2.5m Wire x1
