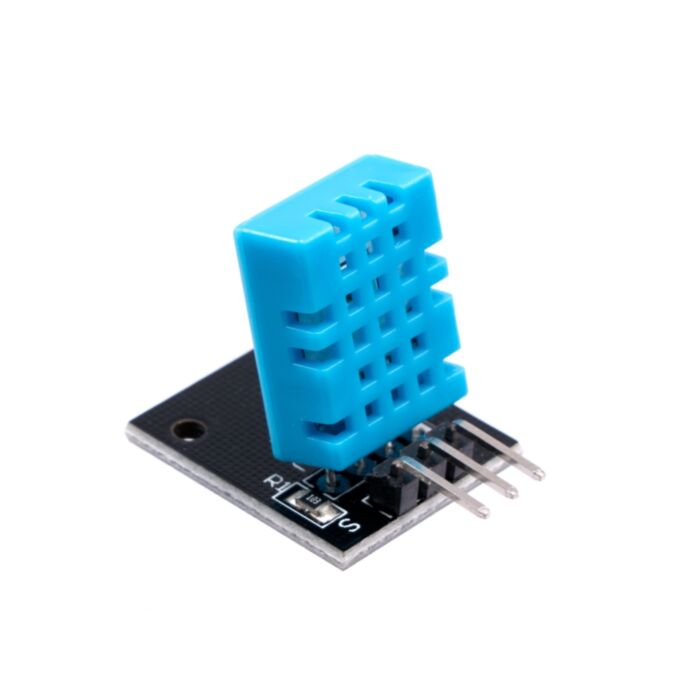

DHT11 Temperature and Relative Humidity Sensor Module

SKU: CE05172

$5.80 AUD, inc GST
$5.27 AUD, exc GST

More Views

DHT11 Temperature and Relative Humidity Sensor Module
5.8 AUD

SKU: CE05172

$5.80 AUD, inc GST
$5.27 AUD, exc GST
4 reviews 0 5 4.5
Shipping Offer

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $9.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Features:

  • DHT11 Sensor
  • The module can detect surrounding environment of the humidity and temperature
  • High reliability and excellent long-term stability
  • Exact board may vary, some have a through hole and some do not

On models with no bolt hole, the pin arrangement is:

  • Left - Signal
  • Middle - VCC
  • Right - GND

Specification:

  • Humidity measurement range: 20%~90%RH
  • Humidity measurement error: ±5%RH
  • Temperature measurement range: 0~60℃
  • Temperature measurement error: ±2℃
  • Working voltage :5 V
  • Size: 28x12x8mm

This product is listed in:

Documentation and Resources:
  • Rain Gauge Data Logger
  • Summary A Raspberry Pi 3B is used to collect digital counts from an electronic rain gauge (1mm of rain per reed switch closure by magnetic see-saw). It has been running without issues for over 12 months. A UPS powers the Pi so it is immune from short power glitches. The total count is displayed on an LCD screen with reset and inc/dec test buttons. “To HTML” and “To LCD” routines are also included to simp...
  • ThingSpeak temperature & pressure logger
  • This project logs temperature and pressure observations to a ThingSpeak channel using an ESP8266 WiFi module.
  • Arduino Cooking Alarm with DS18b20 Sensor
  • Today we will be making an Arduino circuit that will start playing a noise if the water (or surrounding environment) reaches a certain temperature, in our case, that temperature will be 100° Celsius. This is a useful little project that takes barely any time at all but will be extremely useful to know when your pasta is ready, or when your kettle is ready to pour some coffee. In this project, we will be showing you how...
  • Basic Weather Station
  • The aim of this project was to provide a cost effective and basic weather station for my backyard that can upload readings to Weather Underground. Part 2 of the project will be using this local data to trigger activities in and around my house.

Product Comments


Customer Reviews

  1. Review by Chris verified purchaser
    Rating
    100

    A great sensor. It's a lot easier to use these module types if you're into breadboarding. (Posted on 25/03/2017)

  2. Review by Bernd verified purchaser
    Rating
    60

    As the sensor is directly pluggable into breadboard, the point of this breakout seems to be to have a fixing screw. ;-) (Posted on 18/11/2016)

  3. Review by J - Great product verified purchaser
    Rating
    100

    Works great and fast shipping. (Posted on 20/01/2014)

  4. Review by Simon - Great little sensor. verified purchaser
    Rating
    100

    Easy to integrate with an Arduino. Works as a great sensor for data logging projects. (Posted on 12/08/2013)
