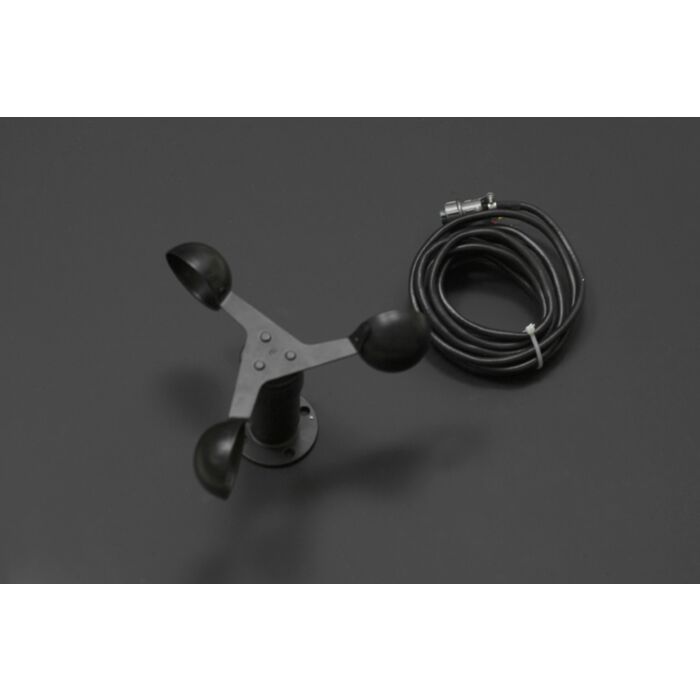

Anemometer Kit (0-5V)

SKU: SEN0170 Brand: DFRobot
Ever want to build your own weather station? This anemometer is made of shell, wind cups and circuit module. It has built-in photovoltaic module, industrial microcomputer processor, and standard current generator. Made with aluminium alloy, the anemomter is of high strength, weather resistance and corrosion resistance. The millitary quality interface ensures long life of this anemometer, at the same time enhancing the accuracy of wind speed acquisition.
$97.85 AUD, inc GST
$88.95 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 30 and Jan 03

Quantity Discounts:

  • 6-12 $86.28 (exc GST)
  • 12+ $84.51 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Ever want to build your own weather station? This anemometer is made of shell, wind cups and circuit module. It has built-in photovoltaic module, industrial microcomputer processor, and standard current generator. Made with aluminium alloy, the anemomter is of high strength, weather resistance and corrosion resistance. The millitary quality interface ensures long life of this anemometer, at the same time enhancing the accuracy of wind speed acquisition.
Together with other components, this anemometer can be widely used in measureing wind in areas such as engineering, railways, docks, power plants, meteorological, cableway, environment study, agriculture, energy monitoring, health study with corresponding signal output.
With the instructions and sample code, users can easily get wind speed level through voltage signal output (0 to 5v).


An Arduino with a single pin connected to A0

Specification

  • Model:JL-FS2
  • Type:three cups
  • Output signal range:0-5V
  • Supply voltage:  DC12-24V
  • Power consumption:Voltage MAX≤0.3W
  • Start wind speed:0.4-0.8m/s
  • Resolution:0.1m/s
  • Effective measurement range:0-30m/s
  • System error:±3%
  • Transmission distance:More than 1000m
  • Transmission medium:Cable transmission
  • Connection mode:Three wires
  • Working temperature:-40°C~80°C
  • Wiring map:12V,GND,analog
  • Weight:1Kg

Documents

Parts List

  • Anemometer  x1
  • Waterproof connector and 3m standard cable x1
  • Screw Kit x1
