Weather Meter Kit

Rating:
100% of 100
SKU: SEN-15901 Brand: Sparkfun
Whether you're an agriculturalist, a professional meteorologist or a weather hobbyist, building your own weather station can be a really rewarding project. When...
$162.36 AUD, inc GST
$147.60 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

  • 5-10 $143.17 (exc GST)
  • 10+ $140.22 (exc GST)
- +

2 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

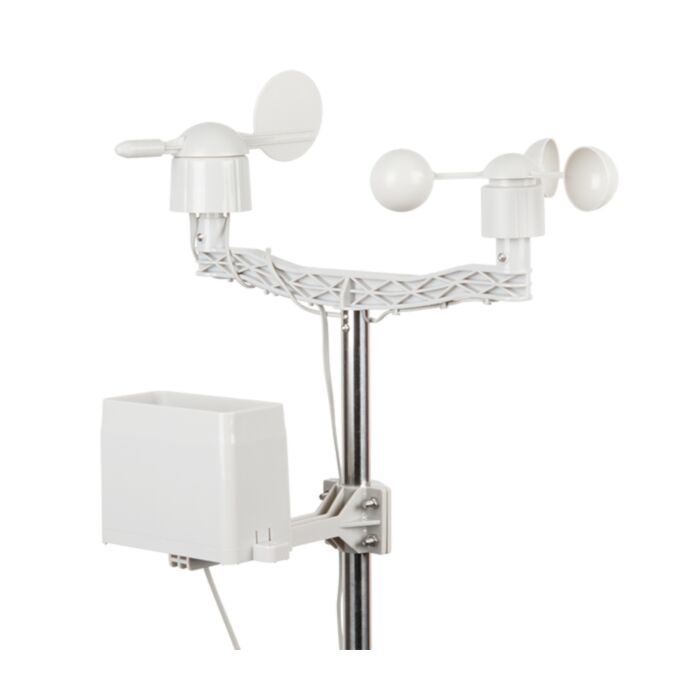

Whether you're an agriculturalist, a professional meteorologist or a weather hobbyist, building your own weather station can be a really rewarding project. When you're measuring weather, however, you need some pretty specialized sensors. This kit represents the three core components of weather measurement: wind speed, wind direction and rainfall.

None of the sensors in this kit contain active electronics, instead they use sealed magnetic reed switches and magnets so you'll need to source a voltage to take any measurements, some recommended circuit schematics are included in the datasheet.

The rain gauge is a self-emptying bucket-type rain gauge which activates a momentary button closure for each 0.011" of rain that are collected. The anemometer (wind speed meter) encodes the wind speed by simply closing a switch which each rotation. A wind speed of 1.492 MPH produces a switch closure once per second. Finally, the wind vane reports wind direction as a voltage which is produced by the combination of resistors inside the sensor. The vane's magnet may close two switches at once, allowing up to 16 different positions to be indicated.

All of the included sensors are supplied with RJ11 terminated cables, for information on the pin-out of the cable, check out the datasheet.



Get started with the Weather Meter Assembly Guide



Note: Some basic assembly is required.

Includes

  • Wind Vane
  • Cup Anemometer
  • Tipping Bucket Rain Gauge
  • Two-Part Mounting Mast
  • Rain Gauge Mounting Arm
  • Wind Meter Mounting Bar
  • 2 x Mounting Clamps
  • 4 x Zip Ties
