RS485 Wind Direction Transmitter

SKU: SEN0482 Brand: DFRobot
The wind direction sensor is a professional meteorological instrument used to measure horizontal wind direction. It integrates a hall sensor inside. The shell and...
$84.70 AUD, inc GST
$77.00 AUD, exc GST

Available with a lead time
Expect dispatch between Mar 15 and Mar 21

Quantity Discounts:

  • 6-12 $74.69 (exc GST)
  • 12+ $73.15 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

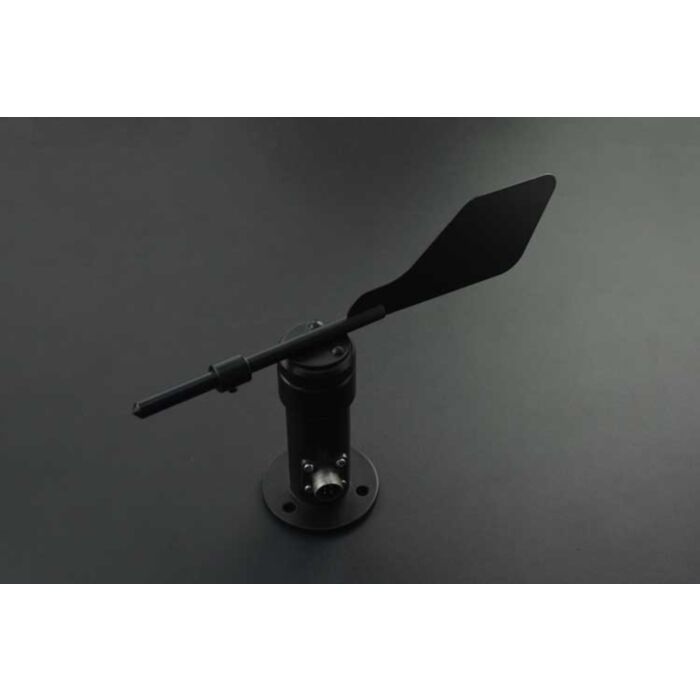

The wind direction sensor is a professional meteorological instrument used to measure horizontal wind direction. It integrates a hall sensor inside. The shell and weather vane is made of aluminum alloy material and uses special mold precision die casting process, featuring small dimension tolerance and high surface accuracy. The sensor internal circuit is protected, which makes the sensor have the properties of high strength, weather resistance, anti-corrosion, and waterproof. The cable connector adopts a corrosion-resistant military plug that ensures the long service life of the product.

A low-inertia wind vane is used to sense the wind direction. When the wind direction changes, the tail wing rotates to drive the axle magnet to rotate through the shaft, thereby obtaining accurate wind direction information. It can detect the 16 azimuths' natural wind directions. This high-cost performance sensor can be widely used in meteorology, ocean, environment, airports, ports, laboratories, industry, agriculture, and transportation.

If you are using this wind direction sensor alongside the RS485 Wind Speed Transmitter you will need to change the address on one unit. You can find instructions on how to change the address on our forum.

Features

  • High measurement accuracy, fast response, good interchangeability
  • Easy to install and operate
  • High sensitivity: start-up wind speed≤0.3m/s
  • Suitable for various harsh environments, high wind resistance

Specification

  • Measuring Range: 16 directions
  • Start-up Wind Speed: 0.3m/s
  • Lead Length: 2.5m/98.43”
  • Power Voltage: 7-24V
  • Communication Protocol: RS485 interface Modbus protocol

Documents

Shipping List

  • RS485 Wind Direction Transmitter x1
  • 2.5m Wire x1
