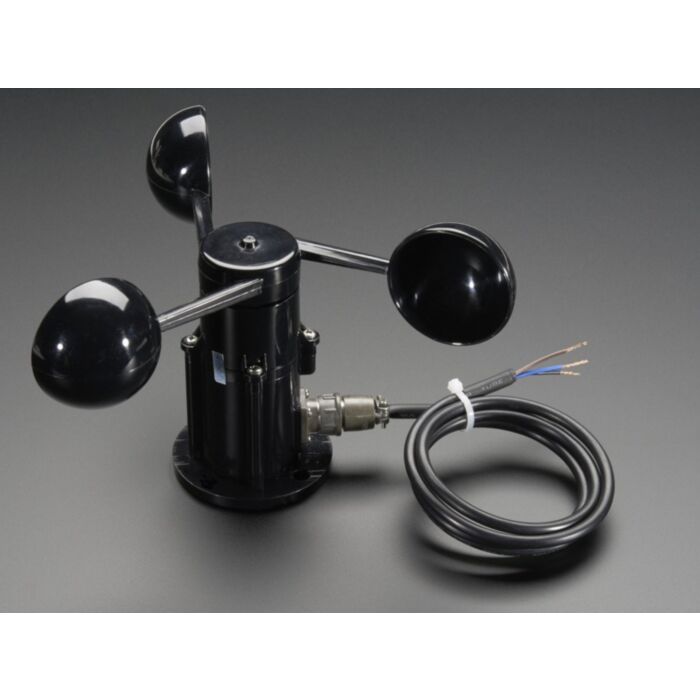

Anemometer Wind Speed Sensor w/Analog Voltage Output

Rating:
93% of 100
SKU: ADA1733 Brand: Adafruit
An anemometer is a device used for measuring wind speed, and is a common weather station instrument. This well made anemometer is designed to sit outside and measure...
$109.95 AUD, inc GST
$99.95 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

  • 5-10 $95.95 (exc GST)
  • 10+ $92.95 (exc GST)
- +

3 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

An anemometer is a device used for measuring wind speed, and is a common weather station instrument. This well made anemometer is designed to sit outside and measure wind speed with ease.

To use, connect the black wire to power and signal ground, the brown wire to 7-24VDC (we have tested it with success between 9-24V, disregard the 12V printed on the label) and measure the analog voltage on the blue wire. The voltage will range from 0.4V (0 m/s wind) up to 2.0V (for 32.4m/s wind speed). That's it! The sensor is rugged, and easy to mount. The cable can easily disconnect with a few twists and has a weatherproof connector.

This anemometer is not IP rated, so it is not designed to withstand water ingress without additional gasketting or protection.

Note: As of 11/06/2014, shipping weight has been changed on this product to match UPS' new dimensional weight regulations.

Technical Details

Dimensions:

  • Height (base to center): 105mm / 4.1"
  • Center out to Cup: 102mm / 4"
  • Arm Length: 70mm / 2.8"
  • Weight: 111.8g

Wire Dimensions:

  • Wire Length: 99cm / 39"
  • Plug Length: 30mm / 1.2"
  • Diameter (thickness): 4.8mm / 0.2"

Specifications

  • Output: 0.4V to 2V
  • Testing Range: 0.5m/s to 50m/s
  • Start wind speed: 0.2 m/s
  • Resolution: 0.1m/s
  • Accuracy: Worst case 1 meter/s
  • Max Wind Speed: 70m/s
  • Connector details: Pin 1 - Power (brown wire), Pin 2 - Ground (black wire), Pin 3 - Signal (blue wire), Pin 4 not connected
