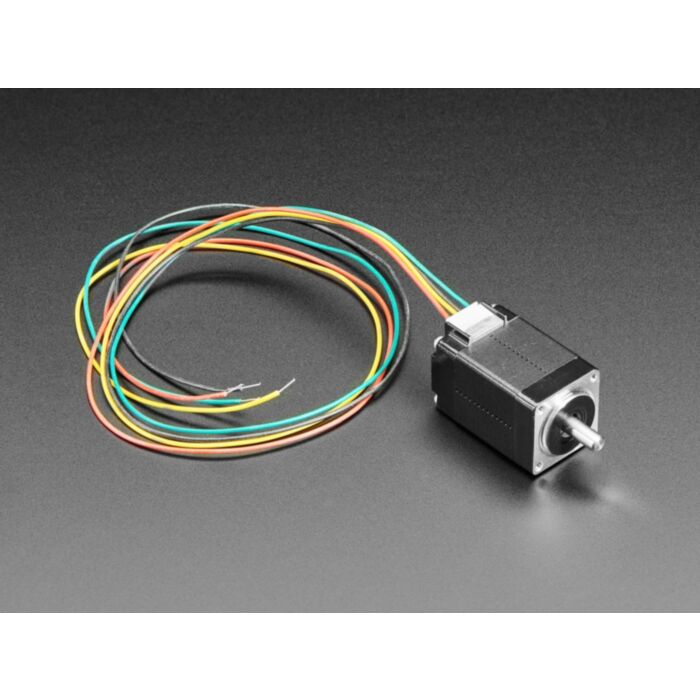

Mini Stepper Motor - 200 Steps - 20x30mm NEMA-8 Size

Rating:
100% of 100
SKU: ADA4411 Brand: Adafruit
This tiny stepper motor is the same quality and step-size as the big NEMA-17's Adafruit stock, but so cute so it will work with compact CNC builds. This 4-wire bipolar...
$43.75 AUD, inc GST
$39.77 AUD, exc GST

Available with a lead time
Expect dispatch between Jan 01 and Jan 06

Quantity Discounts:

  • 10-25 $38.18 (exc GST)
  • 25+ $36.99 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This tiny stepper motor is the same quality and step-size as the big NEMA-17's Adafruit stock, but so cute so it will work with compact CNC builds. This 4-wire bipolar stepper has 1.8° per step for smooth motion and a nice holding torque. The motor was specified to have a max current of 600mA so that it could be driven easily with an Adafruit motor shield for Arduino, Motor Bonnet for Raspberry Pi or Adafruit's Feather Motor controller & and a wall adapter or lead-acid battery. It's rated for 3.9V, if you have a stepper driver with current limiting, use that to keep the power down. If you have a non-current-limiting driver such as the motor shield/hat/feather Adafruit found 5V DC power worked well to power the stepper controller.The cable has ready-to-go wires - the drive-shaft does not have a D cut in it, but you can clamp to it pretty easily. Adafruit drove it with an Adafruit motor shield for Arduino and it hummed along nicely at 50 RPM. To connect to Adafruit's shield/hat/featherwing, put the wires in this order: Black, Red, skip ground if there is one, Green, Yellow.

Technical Details

Specs:

  • Bipolar stepper, requires 2 full H-bridges!
  • 4-wire, approx ~16" leads
  • 33mm x  20mm rectangle body
  • 4mm diameter drive shaft, ~9mm long
  • 3.9V rated voltage (you can drive it at a lower voltage, but the torque will drop) at 600mA max current
  • 28 oz*in, 20 N*cm, 0.2 Kg*cm holding torque per phase
  • 35 ohms per winding
