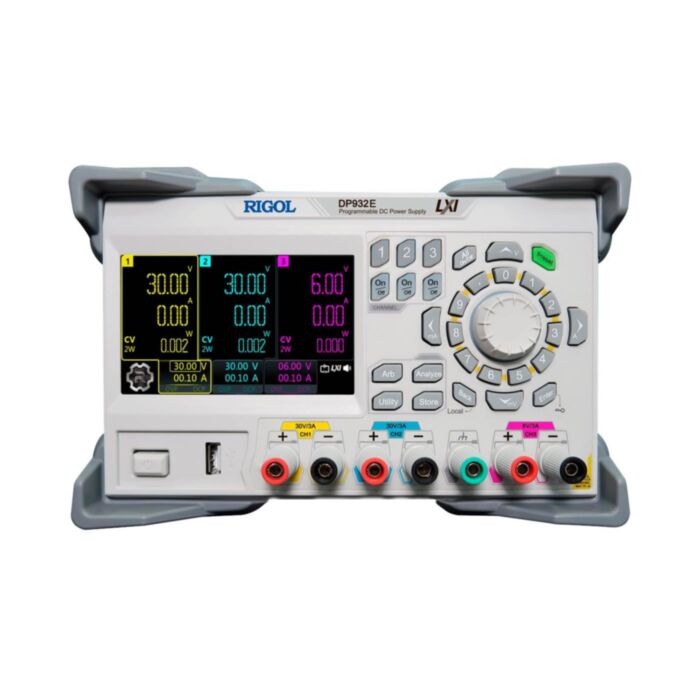

Rigol DP-932E Triple Output DC Power Supply

Rating:

100% of 100

1 Review

SKU: DP932E Brand: Rigol

Three isolated channels with controllable internal series and parallel connections with USB host and device ports!

$929.95 AUD, inc GST

$845.41 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Fri, 15th of Nov

Quantity Discounts:

3-6 $828.50 (exc GST)
6+ $811.59 (exc GST)

The DP900 Series Power Supplies combines Rigols touchscreen interface with new flexibility and higher speed functions designed for benchtop DC power analysis. Combine channels 1 and 2 internally, either in parallel or in series to expand the power envelope for your testing. No more cabling challenges since you can now get the current or voltage for both channels with one cable connection.

This power supply can also be controlled by USB - take a look at our guide to find out more.

Specifications

Channel (Voltage/Current Ranges)

Channel 1: 0 to 30 V / 0 to 3 A
Channel 2: 0 to 30 V / 0 to 3 A
Channel 3:0 to 6 V / 0 to 3 A

Channel (Over Current/Overvoltage Protection)

Channel 1: 1 mV to 33 V/1 mA to 3.3 A
Channel 2: 1 mV to 33 V/1 mA to 3.3 A
Channel 3: 1 mV to 6.6 V/1 mA to 3.3 A

Load Regulation Rate

Voltage <0.01% + 2mV
Current <0.01% + 250uA

Output Ripple and Noise

Normal Mode Voltage <350µVrms/2mVpp
Normal Mode Current <1.5µA rms

Features

Fully Isolated Channels
4.3-inch LCD color touch screen
Internal series/parallel connections for CH1 and CH2

Resources

Rigol DP900 Series Specifications
