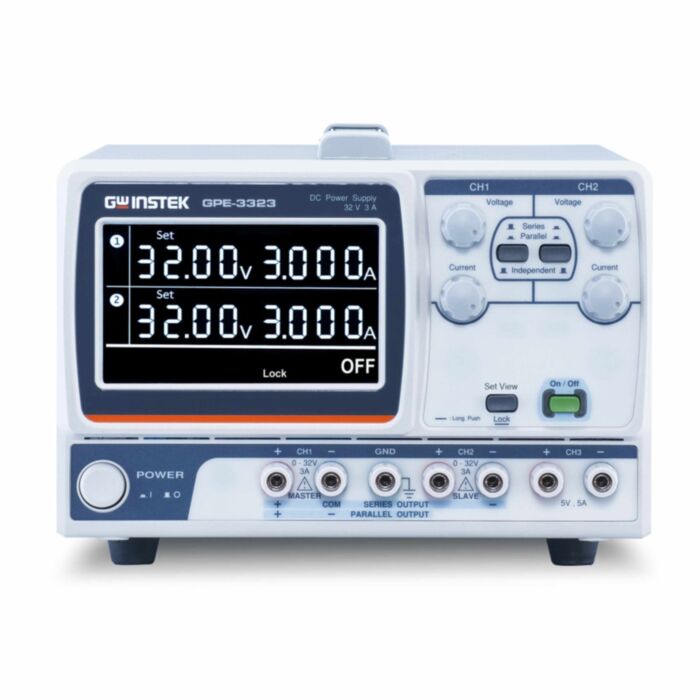

Laboratory Benchtop DC Power Supply (3-channel)

SKU: CE10148

Power circuits with three independent channels. This 217W benchtop supply features one-touch series/parallel tracking and a dedicated 5V/5A output, providing ultra-low ripple and high-resolution control.

$654.95 AUD, inc GST

$595.41 AUD, exc GST

Available with a lead time
Expect dispatch between Feb 18 and Feb 24

Quantity Discounts:

3+ $577.55 (exc GST)
5+ $565.64 (exc GST)

A three-channel DC power supply engineered to provide stable, low-noise power for demanding laboratory and prototyping environments. Featuring two primary adjustable channels and a dedicated high-current 5V output, it serves as a versatile cornerstone for any professional electronics workbench.

Designing complex circuits often requires multiple isolated voltage rails - such as a split-rail supply for operational amplifiers alongside a high-current rail for digital controllers. The GPE-3323 eliminates the clutter of multiple single-output units by providing three independent outputs that can be combined internally for higher voltage or current requirements without external bridge wiring.

Key Features

Achieve higher voltage or current density through one-touch Series and Parallel tracking modes, allowing the two main channels to function as a single 64V/3A or 32V/6A supply.
Protect sensitive prototypes using the Output ON/OFF switch, which allows you to dial in and verify your settings before applying power to your circuit.
Power-hungry control circuits with ease using the dedicated third channel, which provides a fixed 5V output at a substantial 5A capacity.
Maintain precise control over your parameters with the digital "Set View" function, allowing you to monitor programmed limits in real-time on the display.
Prevent accidental set-point changes during long-term testing or in educational settings by utilising the integrated hardware Key Lock function.

Technical Specifications

Property	Specification
Total Power	217W
Output Channels	3 Independent Isolated Channels
Voltage/Current (CH1 & CH2)	0 to 32V / 0 to 3A
Voltage/Current (CH3)	5V (Fixed) / 5A
Series Tracking Mode	0 to 64V / 3A
Parallel Tracking Mode	0 to 32V / 6A
Setting Resolution	10mV / 1mA
Ripple & Noise	≤ 1mVrms / ≤ 3mArms (5Hz ~ 1MHz)
Regulation (Line/Load)	≤ 0.01% + 3mV
Display Type	4.3-inch Character LCD
Dimensions	210 (W) x 155 (H) x 306 (D) mm
Weight	Approx. 7kg
