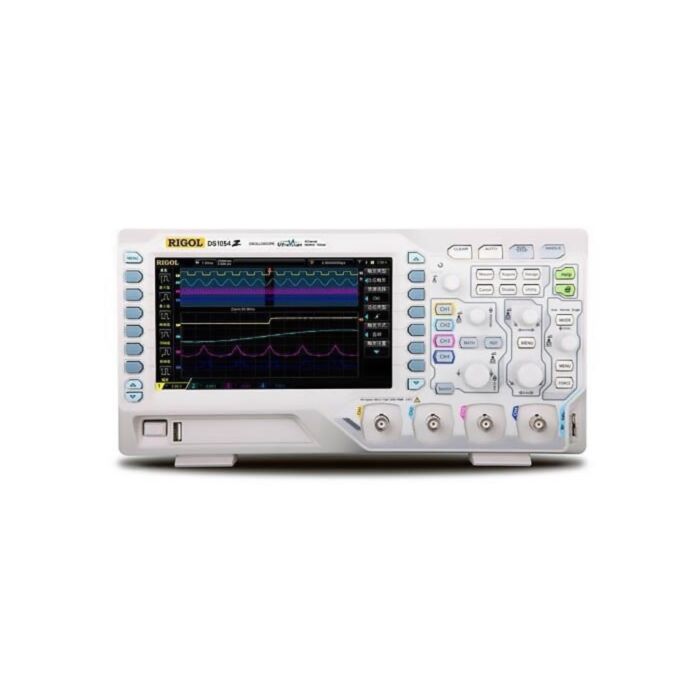

The Rigol DS1054Z represents a remarkable breakthrough in price and performance. It's one of the best general purpose 4 channel digital storage oscilloscopes you can get for the price.
Rigol's UltraVision multi-level intensity grading display makes waveforms crisp and clear on the display. The deep 12Mpts standard memory allowing you to sample waveforms over longer periods of time without wasting the 1GSa/s sample rate. The waveform capture rate is key in finding runt waveforms that occur sometimes when you are debugging your circuit. The 1054z has a capture rate of 30,000 wfms meaning you will be well equipped to handle any runts that come your way. Optional serial bus triggering comes with your scope allowing you to trigger & decode from RS232, I2C and SPI serial buses. The DS1054Z brings 4 channel oscilloscopes within reach of every service department, hobbyist workbench and educational laboratory around Australia.
The Rigol DS1054Z Highlights
- 4 channels, 4 probes included
- 50MHz bandwidth
- 1GS/s real-time sample rate
- 12Mpts standard memory depth
- Up to 30,000 wfms/s waveform capture rate
- Up to 60,000 frames real-time waveform recording option
- Low noise floor,dynamic range: 1mV/div to 10V/div
- Optional serial bus triggering and decoding (RS232, I2C, SPI)
- Complete connectivity: LAN (LXI Core device 2011), USB host & device, AUX
- 7 inch WVGA (800x480) display with multiple intensity level waveform display
