WisBlock E-Paper Module Solomon Systech Limited SSD1680 RAK14000

SKU: RW-110024 Brand: RAKwireless

SSD1680 2.13″ e-paper panel renders black, white or red images reflectively. Bi-stable architecture and ultra-low power suit IoT and maker builds.

$32.05 AUD, inc GST
$29.14 AUD, exc GST

Quantity Discounts:

  • 10+ $27.97 (exc GST)
  • 25+ $27.10 (exc GST)

Out of Stock

Sign up to get notified when it's available to order.

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

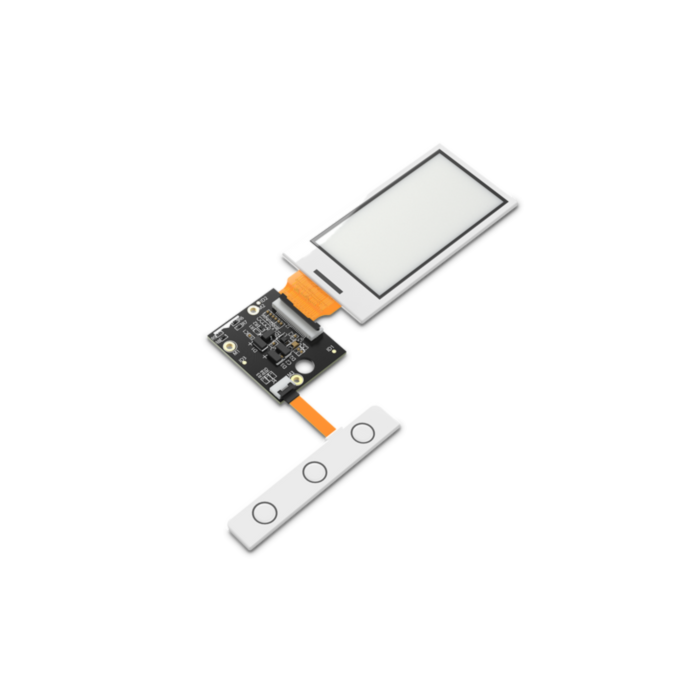

The RAK14000 is a WisBlock E-paper module based on the SSD1680 controller, delivering ultra-low power bi-stable display for battery-powered IoT devices, e-ink dashboards and remote sensors. Available in two variants, it offers reflective mode with on-chip memory and oscillator for static visuals.

Ideal for LoRaWAN sensor nodes, shelf labelling and energy-efficient wearables. Note: Meshtastic firmware support is experimental; for Meshtastic projects consider the RAK1921 OLED display.

Technical Specifications

  • Controller: SSD1680
  • Display variants:
    • White-Black – 2.13 inch, 212 x 104 pixels
    • White-Black-Red – 2.13 inch, 250 x 122 pixels
  • Colours:
    • White-Black: two-colour
    • White-Black-Red: three-colour (black, red, white)
  • Interface: 16-bit SPI
  • Viewing angle: ultra-wide
  • Power consumption: ultra-low, deep sleep current 0.02 µA
  • Operating temperature: –20 °C to 70 °C
  • Bi-stable reflective display for no-power image retention
  • On-chip display RAM and oscillator

Additional Resources

What’s Included

  • 1 × RAK14000 WisBlock E-paper module
  • 1 × E-ink display panel
  • 1 × three-button PCB

WisBlock is RAKWireless's modular hardware development ecosystem designed to make a customised solutions for any IoT project
