Pimoroni Pico Plus 2 W - RP2350 Dev Board with Pico Shape - PIM726
Out of Stock
Sign up to get notified when it's available to order.

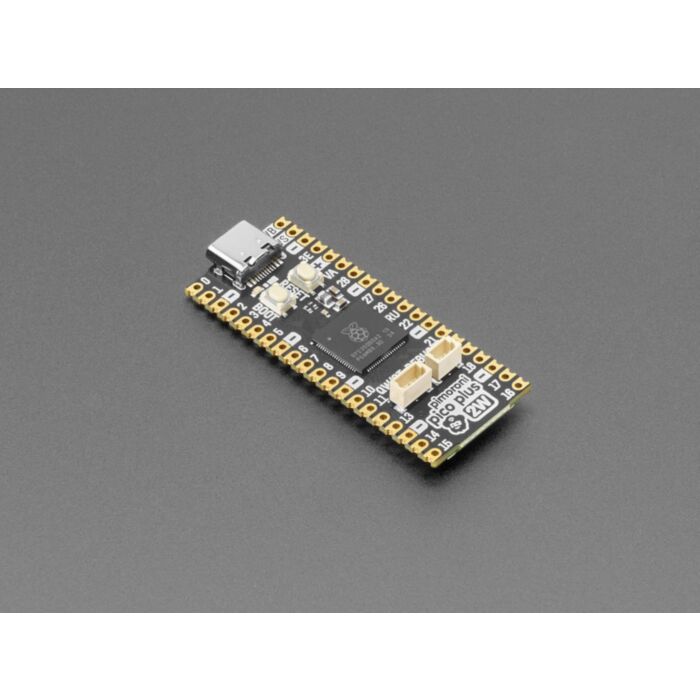

The Pimoroni Pico Plus 2 W is a top of the line Pirate-brand RP2350 microcontroller with 16MB of flash memory, 8MB of PSRAM, USB-C, Qw/ST, debug connectors and 2.4GHz wireless / Bluetooth.. It's an excellent 'drop in' upgrade to the classic Pico 2W when you need MOAR power and memory.
Adafruit adore the versatility and value of Raspberry Pi Pico 2W, but They also enjoy a souped-up RP2350 board with all the extras baked in. The team at Pimoroni crammed in as much extra functionality as they possibly could whilst keeping to the original Pico footprint to maintain compatibility with existing Pico add-ons.
Check out Adafruit's collection of PiCowbells for ways to extend/expand your Pico Plus's hardware capabilities
Pimoroni Pico Plus 2 W has the same shape and pinout as the classic Pico 2W but with the 'B variant of the RP2350 which lets them shoehorn in so much more:
- powered and programmable via USB-C
- comes with an upgraded 8MB PSRAM
- 16MB of flash storage
- Easy-to-read pin labels. It's super easy to connect up to things without soldering
- Qwiic/Stemma connector (for adding I2C sensors and breakouts via cable)
- SP/CE connector (for hooking up SPI/serial devices via cable)
- JST-SH Debug connector (for if you like to program using a SWD debugger)
- Reset button (luxury!)
- BOOT button, which can also be used as a user switch.
- The 'W' version is also equipped with a Raspberry Pi RM2 module, which gives it 2.4 GHz wireless and Bluetooth connectivity, woohaa!
- Supported with Pico SDK, Arduino, MicroPython & CircuitPython
It's super easy to connect up to things without soldering, with a Qwiic/STEMMA QT connector (for adding I2C sensors and breakouts) and a debug connector (for if you like to program using a SWD debugger). They also added a reset button and a BOOT button, which can also be used as a user switch.
Clicking through to the embedded content will allow you to be tracked by the embed provider.
Technical Details
Getting Started
Features
- Powered by the RP2350B (Dual Arm Cortex M33 running at up to 150MHz with 520KB of SRAM)
- 16MB of QSPI flash supporting XiP
- 8MB of PSRAM
- Raspberry Pi RM2 module provides 2.4GHz wireless and Bluetooth connectivity
- USB-C connector for power, programming, and data transfer
- Qw/ST (Qwiic/STEMMA QT) connector for attaching breakouts
- 3 pin debug connector (JST-SH)
- Reset and BOOT buttons (the BOOT button can also be used as a user button)
- User LED indicator
- On-board 3V3 regulator (max regulator current output 600mA)
- Input voltage range 3V - 5.5V
- Compatible with Raspberry Pi Pico add-ons
- Measurements: approx 53mm x 21mm x 9mm (L x W x H, including connectors)
