PiicoDev Colour Sensor VEML6040

Rating:
100% of 100
SKU: CE07823 Brand: PiicoDev Guides (4)
CE Original
Experiment with light! Differentiate colour hues and classify objects based on their colour.
$8.95 AUD, inc GST
$8.14 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

  • 4-12 $7.73 (exc GST)
  • 12+ $7.33 (exc GST)
  • 50+ $6.92 (exc GST)
- +

289 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

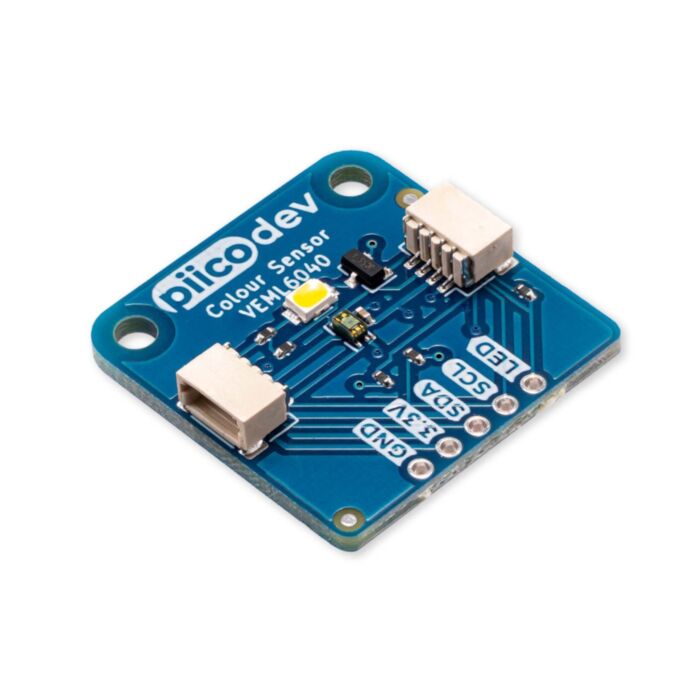

piicodev-colour-sensor-veml6040-limeUse the PiicoDev®  Colour Sensor to measure the RGBW components of light, or even extract the colour of an object so you can compare apples with oranges. Onboard is a high accuracy colour sensor - the VEML6040 boasts 16-bit precision for each channel (R, G, B, W). By using PiicoDev adapters and cables, you can connect to this sensor without soldering - or use the standard breakout header if you prefer breadboard prototyping. Whichever you prefer, the PiicoDev guides will get you measuring colour in no time!

Features

  • Small size, high accuracy
  • Onboard High-CRI LED for measuring reflected light
  • Great guides to get you started
  • PiicoDev connector, compatible with Qwiic and STEMMA QT (3.3V only)
  • 2.54mm breakout for breadboarding/prototyping
  • Manufactured and supported in Australia by Core Electronics

Getting Started Guides

Technical Specifications

  • Address: 0x10,
  • 16-bit precision per channel
  • Dimensions: 25.4x25.4mm
  • Mounting Holes: 2x M2.5
  • Disable LED by pulling LED Pin to Ground.

Resources

Also available are PiicoDev Starter Kits - level up your projects by learning how to use a wide range of modern sensors and outputs.

PiicoDev Colour Sensor VEML6040


PiicoDev Overview

PiicoDev is a ecosystem designed for rapid prototyping and maker education. The range includes:

Here are some of the features we have baked into PiicoDev:

  • Unified MicroPython libraries. The same MicroPython code examples will work on all supported platforms.
  • Simple-and-expandable connections. Modules can be connected using a 4-pin connector and daisy-chained to expand projects.
  • Breakout pins. Every module has a breakout section for optional advanced uses.
  • Consistent size. We have taken care to ensure modules are consistent sizes so that they easy for 3D printing cases, stacking and experimenting with.
  • Creative freedom. Simmer all of these features together and you end up with lots of creative freedom while still being a hands-on electronics experience.

PiicoDev electronics modules are designed and manufactured in Newcastle. They are priced for makers and education alike (affordable!). Get in touch with us if you have any questions.

"PiicoDev" and the PiicoDev Logo are trademarks of Core Electronics Pty Ltd.
