OBD-II to DB9 Cable

SKU: CAB-10087

$16.42 AUD, inc GST
$14.93 AUD, exc GST

More Views

OBD-II to DB9 Cable
16.42 AUD

SKU: CAB-10087

$16.42 AUD, inc GST
$14.93 AUD, exc GST
1 reviews 0 5 5
In stock, with a short lead time. 508 units dispatch in 3 to 6 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Fri, 27th of Oct with Express Post within Australia.
Shipping Offer

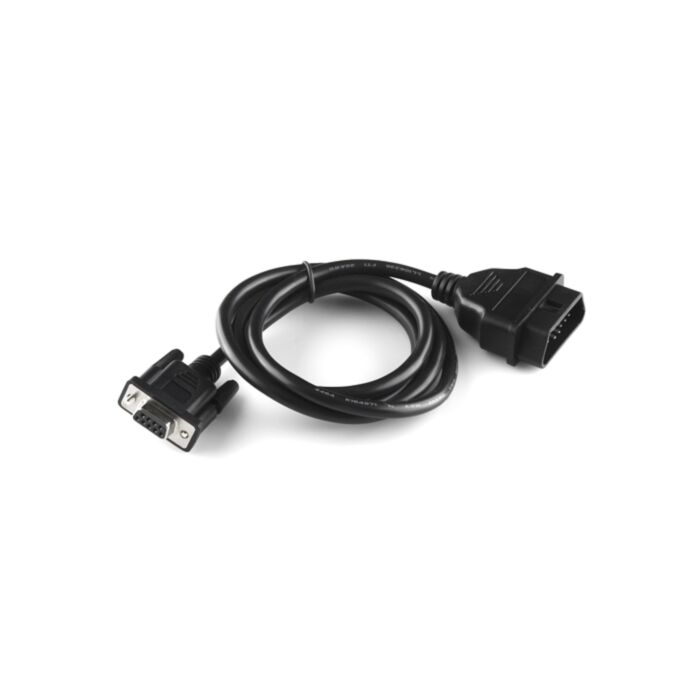

Once you’ve hacked everything, why not go out in the garage and hack your car? This cable allows you to access the pins on your car’s OBDII connector. It has an OBDII connector on one end and a DB9 female serial connector on the other. The overall length of the cable is 5'.

Note: This cable is not meant to be plugged directly into a computer’s serial port. It is meant to plug into some sort of hardware interface.

Here is the basic pinout (OBDII > DB9 Female)

Pin Description OBDII DB9
J1850 BUS+ 2 7
Chassis Ground 4 2
Signal Ground 5 1
CAN High J-2284 6 3
ISO 9141-2 K Line 7 4
J1850 BUS- 10 6
CAN Low J-2284 14 5
ISO 9141-2 L Line 15 8
Battery Power 16 9

Documents:

Documentation and Resources:

Product Comments


Customer Reviews

  1. Review by Mike verified purchaser
    Rating
    100

    The cable does the job, but you need to ensure that the pinout is suitable for the device to which you plan on connecting it (at the vehicle end). (Posted on 23/02/2017)
