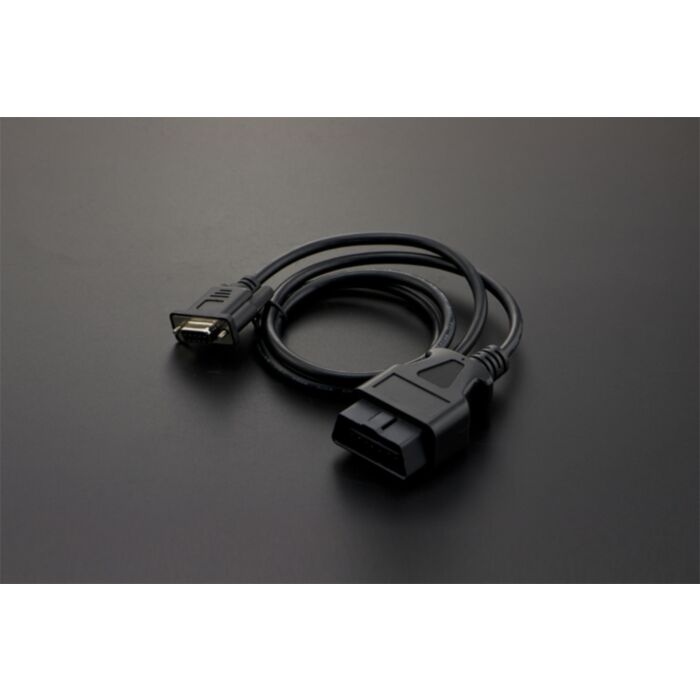

DB9 Serial RS232 OBD2 Cable

SKU: FIT0429

$11.90 AUD, inc GST
$10.82 AUD, exc GST

More Views

DB9 Serial RS232 OBD2 Cable
11.9 AUD

SKU: FIT0429

$11.90 AUD, inc GST
$10.82 AUD, exc GST
2 reviews 0 5 5

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Introduction

OBD II is an On-Board Diagnostics standard that is used on a large variety of cars. It provides access to numerous data from the engine control unit (ECU) and offers a valuable source of information when troubleshooting problems inside a vehicle. This is an OBD-II to DB9 cable, which allows you to access your car’s OBDII connector.
It provides a OBD II and DB9 female connectors. It is indispensable tool if you want to hack your car.

Pin Defination Table:

P1 DB9 Female   P2 OBD II male
  1         ——      5
  2         ——      4
  3         ——      6
  4         ——      7
  5         ——      14
  6         ——      10
  7         ——      2
  8         ——      15
  9         ——      16


Specification

  • Length: 110 cm
  • Weight: 170 g

Parts List

  • DB9 Serial RS232 OBD II cable x1

This product is listed in:

 >
Documentation and Resources:

Product Comments


Customer Reviews

  1. Review by Dave verified purchaser
    Rating
    100

    Hi,
    i purchased this cable in conjunction with the CAN BUS SHIELD V 2.0 to enable me to do some automotive CAN BUS hacking.
    Product is of high standard and waiting to put into use.
    Regards
    Dave. (Posted on 18/07/2018)

  2. Review by Gregory verified purchaser
    Rating
    100

    High quality, beefy cable and connectors. (Posted on 5/07/2018)
