CANBed - Arduino CAN-BUS Development Kit

Rating:

100% of 100

SKU: SS102991321 Brand: Seeed Studio

CANBed - Arduino CAN-BUS Development Kit embeds an ATmega32U4 chip, which means you don’t need to add other jump wires to another Arduino Board

$52.35 AUD, inc GST

$47.59 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 25th of Feb

Quantity Discounts:

6-12 $45.69 (exc GST)
12+ $44.26 (exc GST)

CANBed - Arduino CAN-BUS Development Kit embeds an ATmega32U4 chip, which means you don’t need to add other jump wires to another Arduino Board, it is an Arduino board itself plus MCP2515 CAN Bus controller and MCP2551 CAN Bus transceiver!

Features

Enhanced MCU Performance: ATmega32U4 with Arduino Leonardo bootloader on the board
Compatible with Arduino: Combines CAN-BUS shield and Arduino development board together on a single board
High Speed: Implements CAN V2.0B at up to 1 Mb/s
Rich Resources in Pins: 18 pins that include digital pins, analog pins, UART, and I2C interface
Easy to Use: Requires no other MCU to control and is compatible with Arduino IDE

CAN-BUS is a common protocol and widely used in industry due to its long travel distance, medium communication speed, and high reliability. Now you can realize a CAN-BUS project through this tiny little development board.

Because of the ATmega32U4 onboard chip, this board has rich resources in pins. As a matter of fact, there are 18 pins based on the core chipset up on the board, which include digital pins, analog pins, UART, and an I2C interface. Besides, this CANBed adopts the MCP2515 CAN Bus controller with SPI interface and MCP2551 to achieve the CAN-Bus capability. There are also two kinds of CAN Bus interfaces for various demands which are sub-D9 connector and terminal block interface. They would fit all your needs in the connecting method.

This CAN-Bus development board is perfectly compatible with Arduino IDE. With the help of the Arduino CAN-Bus library, you will save plenty of time for your CAN project.

Specification

Parameter	Value
MCU	ATmega32U4(with Arduino Leonardo bootloader)
Clock Speed	16MHz
Flash Memory	32KB
SRAM	2.5KB
EEPROM	1KB
Operate Voltage(CAN-BUS)	9-28V
Operate Voltage (MicroUSB)	5V
Input Interface	sub-D

Switch for the 120Ω terminal resistor for CAN Bus

If you use this slaver at the end of the CAN bus, you need to solder a 120Ω resister between the two pads, if not just leave them alone.

Included parts

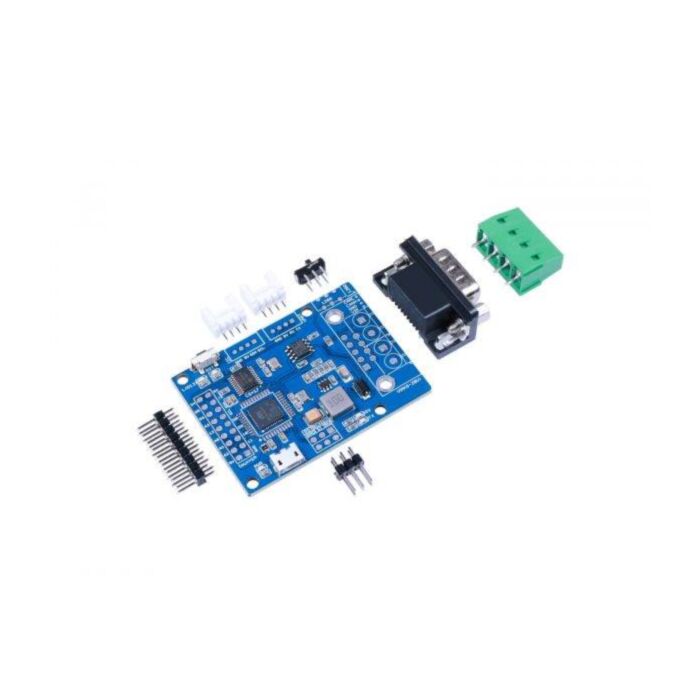

CANBed PCBA	1
sub-D connector	1
4PIN Terminal	1
4PIN 2.0 Connector	2
9x2 2.54 Header	1
3x2 2.54 Header	1

Resources

Arduino CAN-Bus library

Hardware schematic

This product is listed in:

Breakouts & Modules>CAN Bus
