Micro Metal Geared Stepper Motor (12V 0.6kg.cm)

SKU: FIT0503

$9.77 AUD, inc GST
$8.88 AUD, exc GST

More Views

Micro Metal Geared Stepper Motor (12V 0.6kg.cm)
9.77 AUD

SKU: FIT0503

$9.77 AUD, inc GST
$8.88 AUD, exc GST

View our maker favourites for this product which are likely to be a great alternative.

In stock, with a short lead time. 46 units dispatch in 3 to 5 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Fri, 27th of Jul with Express Post within Australia.
OR

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Introduction

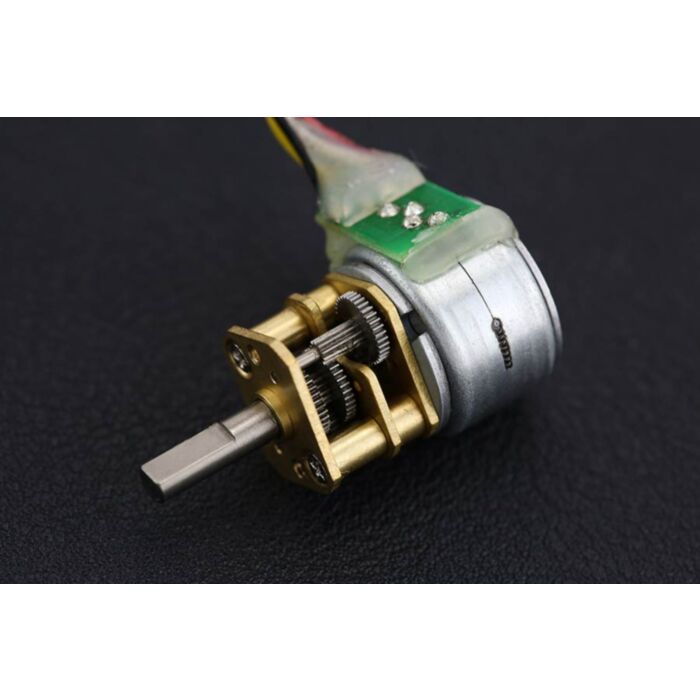

This is a miniature stepper motor with 100:1 metal reduction gear box for enhanced torque. It has a voltage input range of 5 - 12V DC. This product is suitable for the 3D printers and applications which require precise rotation control.

Note: Please limit the motor current, or overlarge current will burn the motor.

Specification

  • Stepper Motor:
    • Coil resistance: 30Ω±10%
    • NO. Of Phases: 2 PHASES
    • Step Angle: 18° / Step
    • MAX.Starting Frequency: 900PPS min
    • MAX.Slewing Frequency: 1200 PPS min
    • Pull IN Torque: 6gf-cm min
    • Lead Out Torque: 10gf-cm max
  • Stepper Motor with Gear Box:
    • Step Angle: 18/100° / Step
    • MAX.Starting Frequency: 900PPS min
    • MAX.Slewing Frequency: 1200 PPS min
    • Pull IN Torque: 0.5Kgf-cm min
    • Lead Out Torque: 0.8Kgf-cm max
  • Cable Length: 15cm
  • Weight: 14g

Documents

Parts List

Micro Metal Geared Stepper Motor (12V 0.6kg.cm) x1
