Bipolar Stepper Motor with Planet Gear Box (18kg.cm)

Rating:
100% of 100
SKU: FIT0349 Brand: DFRobot

This is a bipolar stepper motor with a planetary gearbox (gear ratio: 5.18) and uses a standard 8mm-diameter D type output shaft, with a 1.8° step angle (200 steps/revolution).

$64.90 AUD, inc GST
$59.00 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

  • 6-12 $57.23 (exc GST)
  • 12+ $56.05 (exc GST)
- +

2 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

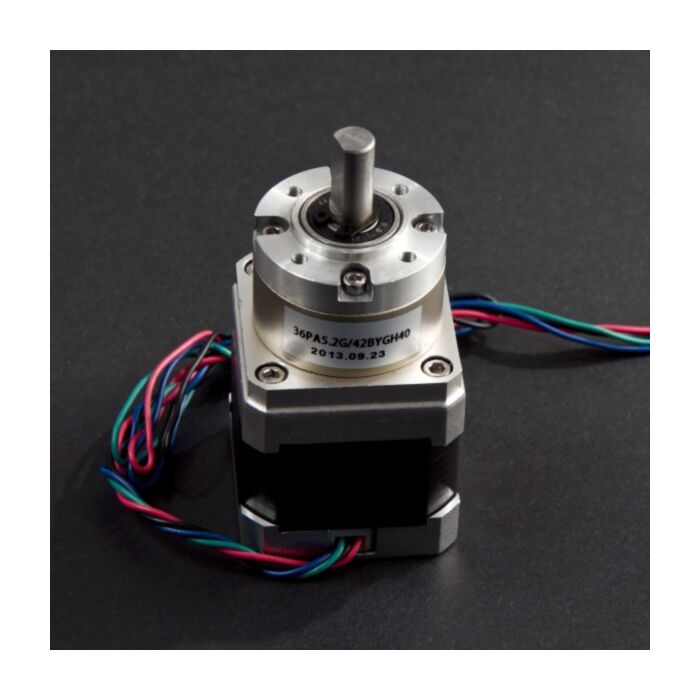

This bipolar stepper motor with a planet gearbox (gear ratio: 5.18) uses a standard 8mm-diameter D-type output shaft and has a 1.8° step angle (200 steps/revolution). Each phase draws 1.0 A at 3.4 V, allowing for a holding torque of 18kg-cm (176N-cm) (200rpm). The motor has a body dimension of 42mm square and 40mm in length, while the planet gearbox is 36mm in diameter and 27mm in length. The motor has four colour-coded wires terminated with bare leads: black and green connect to one coil; red and blue connect to the other. It can be easily mounted with 4 M3 threaded holes and can be controlled with the Dual Bipolar Stepper Motor Shield for Arduino (DRV8825).

Notice: please carefully confirm techical details (torque, dimension, mounting, etc) for your project(s) before purchasing.



APPLICATIONS

  • Printer
  • 3D Printer
  • CNC
  • Robotics
  • Linear Actuators



SPECIFICATION

  • Model No: 42BYGH40-18-22A-C5.18
  • Step Angle (degrees) :1.8
  • 2 Phase
  • Voltage: 3.4V
  • Current: 1.0A
  • Resistance: 1.7±10% Ohm/Phase
  • Inductance: 4.3±20% mH/Phase
  • Holding Torque: 3600 g.cm
  • Detent Torque: 400 g.cm
  • Insulation Class: B
  • Life: 6000 hours
  • Gear Ratio: 5.18:1
  • Hold Torque with Gearbox: 18kg·cm (176N·cm) (200rpm)
  • Dimension: 42×42×40mm(1.65x1.65x1.57")
  • Mounting: 4 x M3
