Stepper motor - NEMA-17 size - 200 steps/rev, 12V 350mA

SKU: ADA324

$23.50 AUD, inc GST

More Views

Stepper motor - NEMA-17 size - 200 steps/rev, 12V 350mA
23.5 AUD

SKU: ADA324

$23.50 AUD, inc GST
3 reviews 0 5 5
0 units ship today
Contact us if you need this product urgently

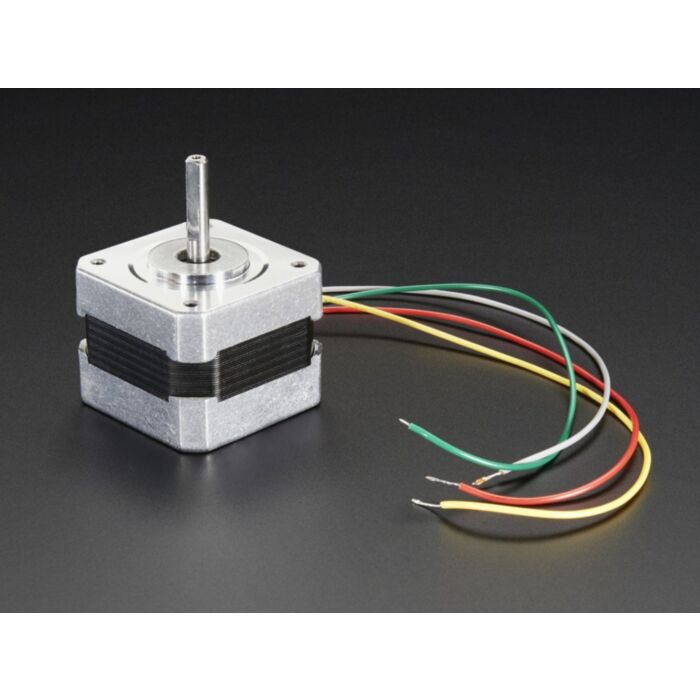

A stepper motor to satisfy all your robotics needs! This 4-wire bipolar stepper has 1.8° per step for smooth motion and a nice holding torque. The motor was specified to have a max current of 350mA so that it could be driven easily with an Adafruit motor shield for Arduino (or other motor driver) and a wall adapter or lead-acid battery.

Some nice details include a ready-to-go cable and a machined drive shaft (so you can easily attach stuff). Adafruit drove it with an Adafruit motor shield for Arduino and it hummed along nicely at 50 RPM. To connect to Adafruit's shield, put the wires in this order: Red, Yellow, skip ground, Green, Brown (or Gray)


Technical Details

  • Datasheet
  • Declaration of Conformity
  • RoHS
  • 200 steps per revolution, 1.8 degrees
  • Coil #1: Red & Yellow wire pair. Coil #2 Green & Brown/Gray wire pair.
  • Bipolar stepper, requires 2 full H-bridges!
  • 4-wire, 8 inch leads
  • 42mm/1.65" square body
  • 31mm/1.22" square mounting holes, 3mm metric screws (M3)
  • 5mm diameter drive shaft, 24mm long, with a machined flat
  • 12V rated voltage (you can drive it at a lower voltage, but the torque will drop) at 350mA max current
  • 28 oz*in, 20 N*cm, 2 Kg*cm holding torque per phase
  • 35 ohms per winding

This product is listed in:

Documentation and Resources:

Product Comments


Customer Reviews

  1. Review by Ezra - Great Motor verified purchaser
    Rating
    100

    Great motor, lots of torque at 12v, and very smooth operation.
    For reference incase you're stuck:
    Coil 1a - Red
    Coil 1b - Yellow
    Coil 2a - Green
    Coil 2b - Grey (Posted on 6/09/2015)

  2. Review by Keith - excellent verified purchaser
    Rating
    100

    Great motor works well with my project (Posted on 27/07/2014)

  3. Review by Adam - Excellent
    Rating
    100

    For the price these steppers can't be beat. Good torque, nice smooth movement, especially when microstepping, and good sturdy construction. It's handy being able to mount the motor via either the front or back plates with standard M3 screws.
    The only slightly annoying thing I found is that if you want to mount it flush on the front plate, the disc shaped protuberance around the shaft means you need to cut a 22mm hole on your mounting plate, or buy a custom mounting bracket. Aside from that it was great. (Posted on 25/01/2014)
