Stepper Motor: Bipolar, 200 Steps/Rev, 35×28mm, 10V, 0.5 A/Phase

Rating:
100% of 100
SKU: POLOLU-1208 Brand: Pololu

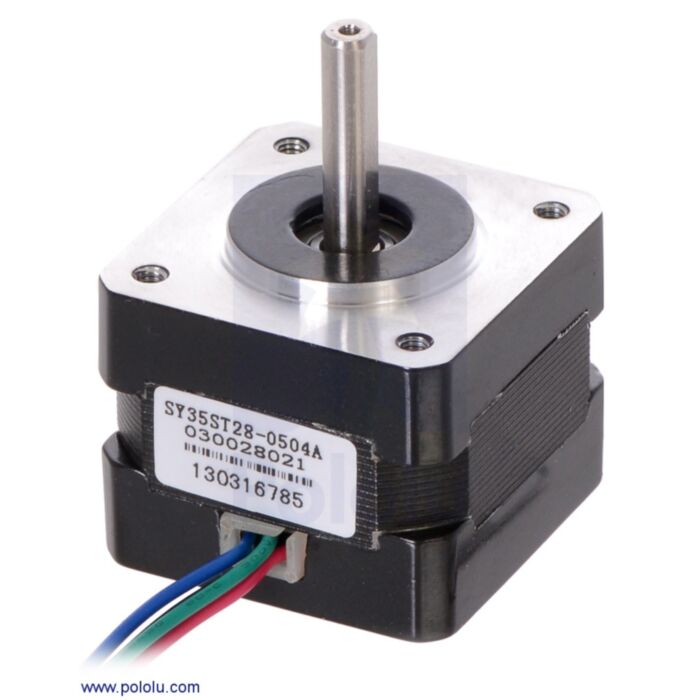

This NEMA 14-size hybrid bipolar stepping motor has a 1.8° step angle (200 steps/revolution). Each phase draws 500 mA at 10 V, allowing for a holding torque of 1 kg-cm (14 oz-in).
$36.80 AUD, inc GST
$33.45 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

  • 10-25 $32.45 (exc GST)
  • 25+ $31.78 (exc GST)
- +

7 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This hybrid bipolar stepping motor has a 1.8° step angle (200 steps/revolution). Each phase draws 500 mA at 10 V, allowing for a holding torque of 1 kg-cm (14 oz-in). The motor has four color-coded wires terminated with bare leads: black and green connect to one coil; red and blue connect to the other. It can be controlled by a pair of suitable H-bridges (one for each coil), but Pololu recommend using a bipolar stepper motor driver or one of Pololu's Tic Stepper Motor Controllers. In particular, the Tics make control easy because they support six different interfaces (USB, TTL serial, I²C, RC, analog voltages, and quadrature encoder) and are configurable over USB with Pololu's free configuration utility.

5mm Pololu universal aluminum mounting hub on a stepper motor with a 5mm-diameter output shaft.

NEMA 14 stepper motor (item #1207) mounted with a Pololu stamped aluminum L-bracket for NEMA 14 stepper motors.

Bipolar stepper motor wires are terminated with bare leads.

Bipolar stepper motor wiring diagram.

Pololu's 5 mm universal mounting hub can be used to mount objects on the stepper motor’s 5 mm-diameter output shaft, and Pololu's NEMA 14 aluminum bracket offers a variety of options for mounting this stepper motor in your project.

Specifications

  • Size: 35 mm square × 28 mm, not including the shaft (NEMA 14)
  • Weight: 140 g (5 oz)
  • Shaft diameter: 5 mm “D”
  • Steps per revolution: 200
  • Current rating: 500 mA per coil
  • Voltage rating: 10 V
  • Resistance: 20 O per coil
  • Holding torque: 1 kg-cm (14 oz-in)
  • Inductance: 13.5 mH per coil
  • Lead length: 30 cm (12")
  • Output shaft supported by two ball bearings

More specifications are available in the datasheet (185k pdf).

Dimensions

The following diagram shows the stepper motor dimensions in mm. The dimension labeled “length” is 28 mm. The output D-shaft has a length of 21 mm and a 5 mm diameter with a section that is flattened by 0.5 mm. This shaft works with Pololu's 5 mm universal mounting hub.

The inside of a bipolar stepper motor (SOYO NEMA 14-size).

Stepper Motor Applications

Stepper motors are generally used in a variety of applications where precise position control is desirable and the cost or complexity of a feedback control system is unwarranted. Here are a few applications where stepper motors are often found:

  • Printers
  • CNC machines
  • 3D printer/prototyping machines (e.g. RepRap)
  • Laser cutters
  • Pick and place machines
  • Linear actuators
  • Hard drives

Pololu’s assortment of stepper motors.

Note: This stepper motor is SOYO part number SY35ST28-0504A.

People often buy this product together with:

A4988 Stepper Motor Driver CarrierA4988 Stepper Motor Driver Carrier
Pololu Universal Aluminum Mounting Hub for 5mm Shaft, #4-40 Holes (2-Pack)Pololu Universal Aluminum Mounting Hub for 5mm Shaft, #4-40 Holes (2-Pack)
Pololu Stamped Aluminum L-Bracket for NEMA 14 Stepper MotorsPololu Stamped Aluminum L-Bracket for NEMA 14 Stepper Motors

Dimensions

Size: 35 mm square × 28 mm1
NEMA size: 14
Weight: 140 g
Shaft diameter: 5 mm

General specifications

Shaft type: 5 mm "D"
Current rating: 500 mA2
Voltage rating: 10 V
Holding torque: 14 oz·in
Steps per revolution: 200
Resistance: 20 Ohm2
Inductance per phase: 13.5 mH
Number of leads: 4
Lead length: 30 cm

Notes:

1
Not including the shaft.
2
Per coil.
