Stepper Motor with Cable

SKU: ROB-09238

$25.48 AUD, inc GST
$23.16 AUD, exc GST

More Views

Stepper Motor with Cable
25.48 AUD

SKU: ROB-09238

$25.48 AUD, inc GST
$23.16 AUD, exc GST
1 reviews 0 5 5
In stock, ships today if ordered before 2PM
Delivered by Mon, 21st of Aug
Shipping Offer

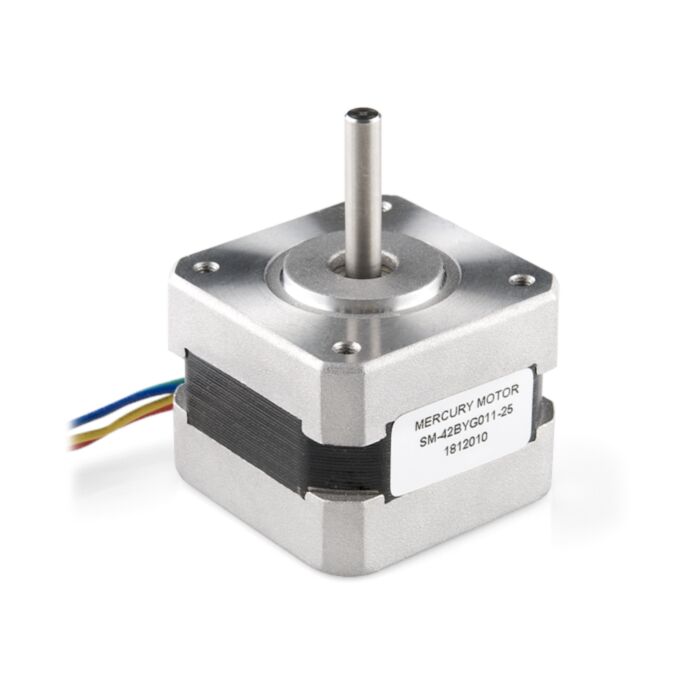

This is a simple, but very powerful stepper motor with a 4-wire cable attached.

This is a Bipolar Motor.

Features:

  • Step Angle (degrees) :1.8
  • 2 Phase
  • Rated Voltage : 12V
  • Rated Current : 0.33A
  • Holding Torque : 2.3kg*cm
  • 5mm Diameter Drive Shaft
  • Winding resistance: 32.6 Ω
  • Winding inductance: 48 mH
  • Max flux linkage: 1.8 Vs
  • Maximum Detent Torque: 0.016 N.M
  • Total inertia (kg.m.m): 3.5 Kg.m.m
  • Total friction (kg.m/s): 4 Kg.m/s
  • NEMA 16

Documents:

This product is listed in:

Documentation and Resources:
  • The Maker Revolution
  • The Maker Revolution celebrates the creation of new devices and the modification of existing ones - the transition from a consumer buying goods to eventually having a major part in their creation. The Maker Revolution places strong emphasis on free (...
  • Motor Drivers vs. Motor Controllers
  • If you’ve ever built a robot with wheels, or any motorised parts really, you’ll have come across the issue of needing to drive it from your microcontroller. Because a standard chip is only able to output a small amount of current, you&rsq...

Product Comments


Customer Reviews

  1. Review by Ray verified purchaser
    Rating
    100

    Great motor, especially for the price (Posted on 10/05/2016)
