Connectors & Sockets > Crimp Pins

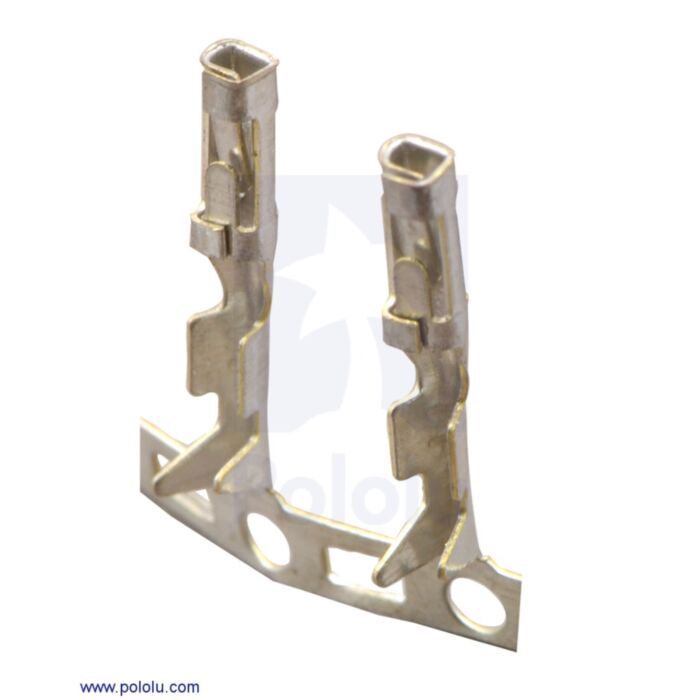

Female Crimp Pins for 0.1" Housings 100-Pack

SKU: POLOLU-1930

$7.49 AUD, inc GST
$6.81 AUD, exc GST
Female Crimp Pins for 0.1" Housings 100-Pack
7.49 AUD

SKU: POLOLU-1930

$7.49 AUD, inc GST
$6.81 AUD, exc GST
9 reviews 0 5 5
Shipping Offer

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

These pins can be crimped on wires and snapped into Pololu's crimp connector housings to create custom cables that are compatible with standard 0.1"-pitch male and female headers and solderless breadboards. They work with 22 to 28AWG wires, though 22AWG wires with thick insulation might be difficult to fit into the pins.

Male crimp pin for 0.1" housings crimped onto a wire.
Female crimp pin for 0.1" housings crimped onto a wire.
Dimensions (in mm) of male crimp pins for 0.1" housings.
Dimensions (in mm) of female crimp pins for 0.1" housings.

These crimp pins are sold in packs of 100 and are available in male and female versions:

Male crimp pins for 0.1" housings 100-pack.
Female crimp pins for 0.1" housings 100-pack.

Note that crimping these pins on wires can be a difficult and time-consuming process without a good crimping tool (and sometimes even with a good crimping tool). Please consider Pololu's wires with pre-crimped terminals, which use these same pins, or Pololu's premium jumper wires as simpler alternatives.

Crimping tool: 0.08-0.5 mm² capacity, 20-28 AWG.
Wires with pre-crimped terminals 20-piece rainbow assortment M-F 36".

This product is listed in:

Documentation and Resources:
  • The Maker Revolution
  • The Maker Revolution celebrates the creation of new devices and the modification of existing ones - the transition from a consumer buying goods to eventually having a major part in their creation. The Maker Revolution places strong emphasis on free (...

Product Comments


Customer Reviews

  1. Review by Sean verified purchaser
    Rating
    100

    Good quality, easy to crimp (Posted on 11/06/2018)

  2. Review by Lisa verified purchaser
    Rating
    100

    I use these all the time for custom jumper leads or servo cables. If your are new to using these my tip is cut strip that joins them all together leaving it attached to the pin, as it gives you something to hold onto, make your crimp and then snap the peice of joining strip off. (Posted on 1/05/2018)

  3. Review by Ross verified purchaser
    Rating
    100

    For those hobbyists who prefer to "roll your own" jumper leads for connecting to 0.1" spacing header pins the Pololu crimp connector housing and the attendant female crimp pin are ideal. They are well made and providing you have the correct crimping tool they produce an elegant solution. The price is good too! (Posted on 16/02/2018)

  4. Review by Joe verified purchaser
    Rating
    100

    As advertised and expected. (Posted on 17/01/2018)

  5. Review by John - Performed as expected verified purchaser
    Rating
    100

    All items received in a couple of days , and every item was what I wanted , and have performed as expected (Posted on 16/01/2018)

  6. Review by Iain verified purchaser
    Rating
    100

    Easy to work with (Posted on 4/04/2017)

  7. Review by Evan verified purchaser
    Rating
    100

    Product as described and good quality (Posted on 20/10/2016)

  8. Review by Wayne verified purchaser
    Rating
    100

    Got these to match the crimp pin housings. These are working out really well. Without having a proper crumping tool, I guess it's a little tricker, but it's not too difficult to crimp onto the wire with a small flat screwdriver.

    I find it much easier to leave the pin on the roll and do the crimping there. Remove once the crimping is complete. (Posted on 9/06/2016)

  9. Review by Laurens verified purchaser
    Rating
    100

    As a first timer it took me some time to master the art of crimping these so they fitted in the connector (Posted on 14/03/2016)
