Crimping Tool: 0.1-1.0 mm² Capacity, 16-28 AWG

Rating:
97% of 100
SKU: POLOLU-1928 Brand: Pololu Guides (1)

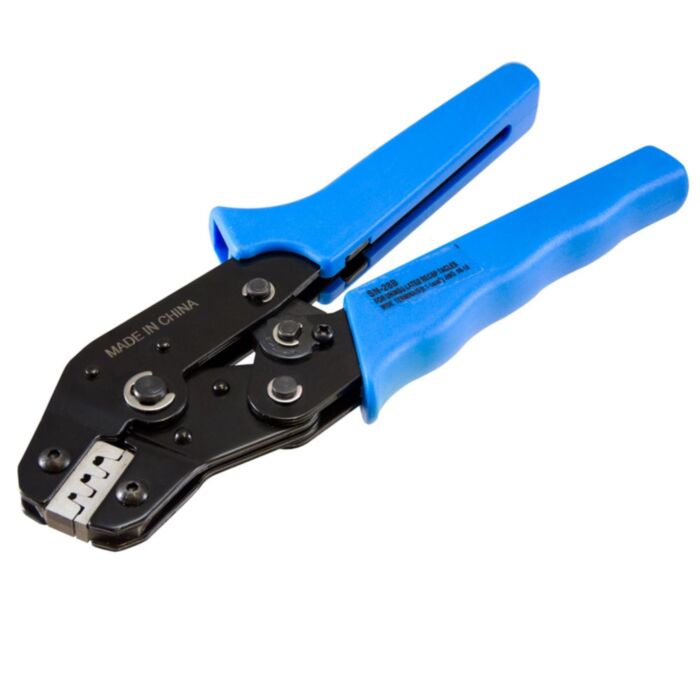

This crimping tool can be used to crimp both male and female versions of Pololu's Tamiya connector crimp pins, mini Tamiya connector crimp pins, JST connector crimp pins, JR crimp pins, Futaba J crimp pins, and crimp pins for 0.1″ housings onto 16-28 AWG wires to make custom cables. The crimping die has a width of 7 mm, and the tool offers ratcheting action for increased consistency and ease of use.
$85.62 AUD, inc GST
$77.84 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 2nd of Apr

Quantity Discounts:

  • 6+ $76.67 (exc GST)
- +

4 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Make Custom Connectors

As you build more projects you start to find that the standard jumpers available just won't work, they are either too short and won't reach or too long and you have messy looking wires. With this tool, you can create your own custom cables of any length you want with a variety of terminations that will have your project working well and looking great.

sixteen-to-twenty-eight-AWG-Crimping-tool Crimping-tool-teeth

Selecting the Right Tool

We also have a less expensive, narrower (4 mm) crimper that can also crimp JST connector, JR, Futaba J, and 0.1" housing crimp pins, though this alternate tool can only crimp the full extent of wire barrel on the JST pins. You can use the following table to help you decide which cavity of which crimping tool you need:

Tool Cavity Crimp Pins Wire Gauge (AWG)
Wide Crimping Tool - POLOLU-1928
0.1-1.0 mm² Capacity, 16-28 AWG
Outer 0.1" Housing Female
0.1" Housing Male
JST Female
JST Male
JR Female
JR Male
Futaba Female
Futaba Male
26-28
Middle 22-26
Inner Tamiya Female
Tamiya Male
Mini Tamiya Female
Mini Tamiya Male
16-20
Narrower Crimping Tool - POLOLU-1929
0.08-0.5 mm² Capacity, 20-28 AWG
Outer 0.1" Housing Female
0.1" Housing Male
JST Female
JST Male
JR Female
JR Male
Futaba Female
Futaba Male
26-28
Inner 22-26

Using the Crimping Tool

Prepare the wire by stripping about 1/8" (3 mm) of insulation from the end. Place the wire in the crimp pin, lining it up so that the stripped portion lies between the inner set of tabs on the crimp pin, while insulated wire lies between the outer set of tabs.

JST-wire-placement-for-crimping

Place the wire and crimp pin on the appropriate tooth of the tool’s die, making sure that the insulated end is on the raised and wider half of the tooth. The tabs should point toward the cavity on the other side of the die so that the tool bends them inward around the wire when it closes.

JST-teeth-position-for-crimping

Close the jaws of the tool slowly and completely until they release. The tabs on a properly crimped pin should form one barrel around the wire conductors and another barrel for strain relief around the wire insulation.

finished-JST-Connector

Tip: The strain relief barrel sometimes ends up a little overly flattened, making it too wide to fit comfortably into the crimp pin housing. In such situations, you can use a pair of pliers to gently squeeze the wider axis of the barrel into a more cylindrical shape that will slide easily into the housing.

One of Pololu's customers has made a very nice video tutorial that talks about how to make custom cables with pre-crimped wires and with self-crimped wires. The section on using Pololu's crimping tool starts at approximately 4:15 and shows the process in detail. One of Pololu's distributors has also made a short video tutorial that shows how to use this crimping tool.

This useful inspection chart (pdf) by JST shows properties of good and bad crimp connections to look out for when checking your own connections.
