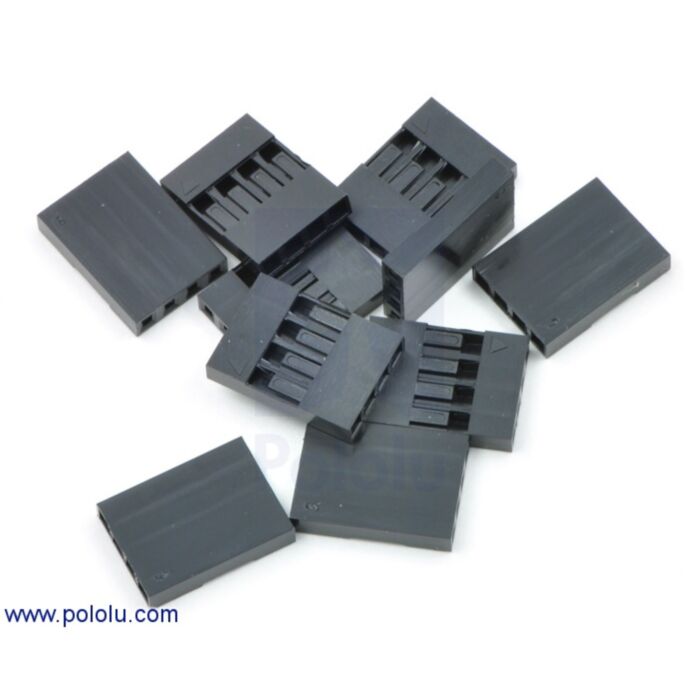

These housings work with Pololu's wires with pre-crimped terminals and Pololu's crimp pins to let you quickly make custom cables that mate with various 0.1"-spaced connectors, including male and female headers and solderless breadboards. Just pick the housing for the correct number of pins, pick the colors and genders for your wires, and snap them into the housings (note: it’s not easy to get the wires back out, so plan carefully!).
You can easily make cable harnesses or assemblies that branch from one connector on one side to multiple connectors on the other; you can also cut off one pre-crimped end and solder the wires directly to components to make swapping connections easy:
The following video talks about some of Pololu's various wire and cable options and includes a short demonstration of how to use these housings:
And this customer-made video shows how to make custom cables with these crimp connector housings using pre-crimped wires and self-crimped wires made with Pololu's crimping tool.
Dimensions
Pins | A (mm) | B (mm) |
---|---|---|
1×1 | – | 2.54 |
1×2 | 2.54 | 5.08 |
1×3 | 5.08 | 7.62 |
1×4 | 7.62 | 10.16 |
1×5 | 10.16 | 12.70 |
1×6 | 12.70 | 15.24 |
1×7 | 15.24 | 17.78 |
1×8 | 17.78 | 20.32 |
1×9 | 20.32 | 22.86 |
1×10 | 22.86 | 25.40 |
1×12 | 27.94 | 30.48 |
1×16 | 38.10 | 40.64 |
1×20 | 48.26 | 50.80 |
2×2 | 2.54 | 5.08 |
2×3 | 5.08 | 7.62 |
2×4 | 7.62 | 10.16 |
2×5 | 10.16 | 12.70 |
2×6 | 12.70 | 15.24 |
2×7 | 15.24 | 17.78 |
2×8 | 17.78 | 20.32 |
2×10 | 22.86 | 25.40 |
2×12 | 27.94 | 30.48 |
2×13 | 30.48 | 33.02 |
2×16 | 38.10 | 40.64 |
2×17 | 40.64 | 43.18 |
2×18 | 43.18 | 45.72 |
2×20 | 48.26 | 50.80 |
Pololu have seen these connectors referred to as “DuPont-style” connector housings, though Pololu have not verified that they can be used as direct substitutes for connector housings formerly made by DuPont. Pololu intend for them to be used with Pololu's wires with pre-crimped terminals or Pololu's male or female crimp pins.
People often buy this product together with:
0.1" (2.54mm) Crimp Connector Housing: 1x1-Pin 25-Pack |
0.1" (2.54mm) Crimp Connector Housing: 1x2-Pin 25-Pack |
0.1" (2.54mm) Crimp Connector Housing: 1x3-Pin 25-Pack |
Dimensions
Pins: | 1 x 4 |
---|---|
Spacing: | 0.1 in |
Recommended links
Short video tutorial on how to make custom cables (by customer Derek Molloy)
This video, created by customer Derek Molloy, discusses various options for making custom cables with Pololu's crimp connector housings, such as by using Pololu's pre-crimped wires or crimping your own with Pololu's wider crimping tool, though the same technique works with Pololu's narrower crimping tool as well. The section on using the crimping tool starts at around 4:15.
