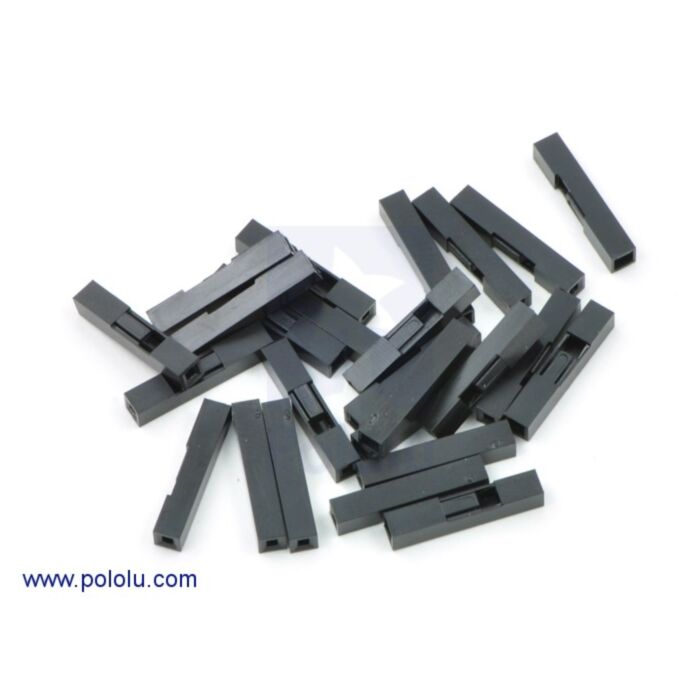

0.1" (2.54mm) Crimp Connector Housing: 1x1-Pin 25-Pack

SKU: POLOLU-1900

$0.80 AUD, inc GST
$0.73 AUD, exc GST

More Views

0.1" (2.54mm) Crimp Connector Housing: 1x1-Pin 25-Pack
0.8 AUD

SKU: POLOLU-1900

$0.80 AUD, inc GST
$0.73 AUD, exc GST
8 reviews 0 5 4.9
In stock, ships today if ordered before 2PM
Delivered by Mon, 23rd of Oct
Shipping Offer

Overview

These housings work with Pololu's wires with pre-crimped terminals and Pololu's crimp pins to let you quickly make custom cables that mate with various 0.1"-spaced connectors, including male and female headers and solderless breadboards. Just pick the housing for the correct number of pins, pick the colors and genders for your wires, and snap them into the housings (note: it’s not easy to get the wires back out, so plan carefully!).

You can easily make cable harnesses or assemblies that branch from one connector on one side to multiple connectors on the other; you can also cut off one pre-crimped end and solder the wires directly to components to make swapping connections easy:

The following video talks about some of Pololu's various wire and cable options and includes a short demonstration of how to use these housings:

And this customer-made video shows how to make custom cables with these crimp connector housings using pre-crimped wires and self-crimped wires made with Pololu's crimping tool.

Dimensions

Pins A (mm) B (mm)
1×1 2.54
1×2 2.54 5.08
1×3 5.08 7.62
1×4 7.62 10.16
1×5 10.16 12.70
1×6 12.70 15.24
1×7 15.24 17.78
1×8 17.78 20.32
1×9 20.32 22.86
1×10 22.86 25.40
1×12 27.94 30.48
1×16 38.10 40.64
1×20 48.26 50.80
2×2 2.54 5.08
2×3 5.08 7.62
2×4 7.62 10.16
2×5 10.16 12.70
2×6 12.70 15.24
2×7 15.24 17.78
2×8 17.78 20.32
2×10 22.86 25.40
2×16 38.10 40.64
2×20 48.26 50.80

We've seen these connectors referred to as “DuPont-style” connector housings, though Pololu have not verified that they can be used as direct substitutes for connector housings formerly made by DuPont. Pololu intend for them to be used with Pololu's wires with pre-crimped terminals or Pololu's male or female crimp pins.

This product is listed in:

Documentation and Resources:
  • The Maker Revolution
  • The Maker Revolution celebrates the creation of new devices and the modification of existing ones - the transition from a consumer buying goods to eventually having a major part in their creation. The Maker Revolution places strong emphasis on free (...

Product Comments


Customer Reviews

  1. Review by Geoff verified purchaser
    Rating
    100

    These are fantastic for quick and simple prototyping without needing a breadboard. (Posted on 14/09/2017)

  2. Review by dave verified purchaser
    Rating
    100

    Excellent (Posted on 23/08/2017)

  3. Review by Evan verified purchaser
    Rating
    100

    Product as described and good quality (Posted on 20/10/2016)

  4. Review by dean verified purchaser
    Rating
    100

    Worked fine, no prob, big thumbs vs small parts :) (Posted on 4/08/2016)

  5. Review by Will verified purchaser
    Rating
    100

    Work well. (Posted on 10/06/2016)

  6. Review by Wayne verified purchaser
    Rating
    100

    These connector housing work great, and a decent price as well. Finally wanted to do a proper job with my project and these have worked out pretty well in conjunction with the crimp pins that go with it. (Posted on 9/06/2016)

  7. Review by Greg verified purchaser
    Rating
    80

    Great for quickly building cables (Posted on 24/05/2016)

  8. Review by Douglas verified purchaser
    Rating
    100

    As a teacher of electronics these are useful for student lab cable ends to ensure durability and ease of use for the students.
    I will continue to use them. (Posted on 21/01/2016)
