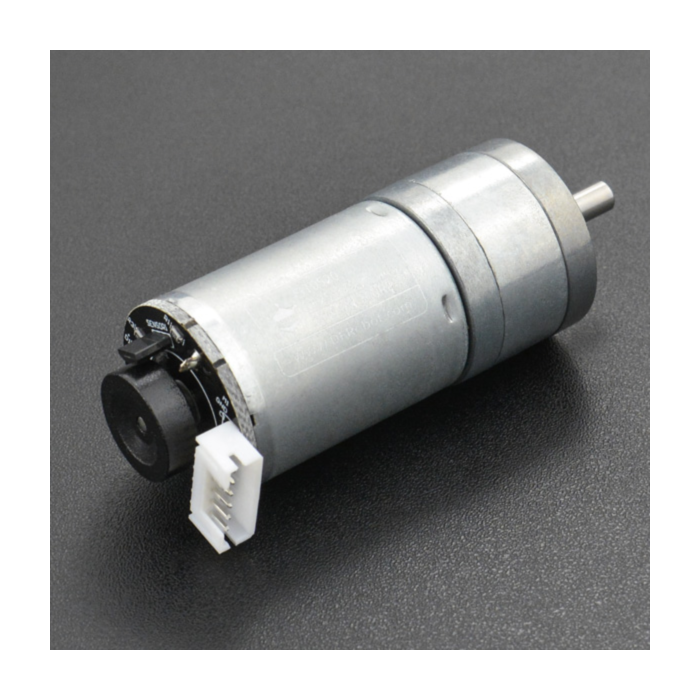

Metal DC Geared Motor w/Encoder - 6V 300RPM 3.6Kg.cm

SKU: FIT0520 Brand: DFRobot

This is a metal geared DC motor w/Encoder. It is a 6V motor with a 20:1 metal gearbox and an integrated quadrature encoder that provides a resolution of 11 counts...

$32.75 AUD, inc GST

$29.77 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 18th of Nov

Quantity Discounts:

10-25 $28.88 (exc GST)
25+ $28.28 (exc GST)

This is a metal geared DC motor w/Encoder. It is a 6V motor with a 20:1 metal gearbox and an integrated quadrature encoder that provides a resolution of 11 counts per revolution of the motor shaft, which corresponds to 224.4 counts per revolution of the gearbox’s output shaft. These units have an 8 mm length, 4 mm-diameter D-shaped output shaft. This motor is intended for use at 6V, though the motor can begin rotating at voltages as low as 1V. This motor is an ideal option for your mobile robot project.

Dimensions

Specifications

Motor Rated Voltage: 6V
Encoder Rated Voltage: 3.3 / 5V
Reducer Reduction Ratio: 1: 20
No load Speed: [email protected]
Maximum Efficiency Point: load 0.7Kg·cm / 245RPM / 1.2W / 0.4A
Maximum Power point: Load 1.8Kg·cm / 160RPM / 2W / 0.8A
Stall Torque: 3.6kg · cm
Stall Current: 2.7A
Hall Resolution: Hall Resolution 11x Precision Reduction Ratio 20.4 = 224.4PPR/ RPM
Dimension: 50 * Φ24.4 mm / 1.97 * Φ0.96inches
Weight: 96g

Documents

Pinmap

Parts List

1x Metal DC Geared Motor w/Encoder - 6V 300RPM 3.6Kg.cm

1x JST 6-Pin cable
