Pololu 25D mm Metal Gearmotor Bracket Pair

Rating:
100% of 100
SKU: POLOLU-2676 Brand: Pololu

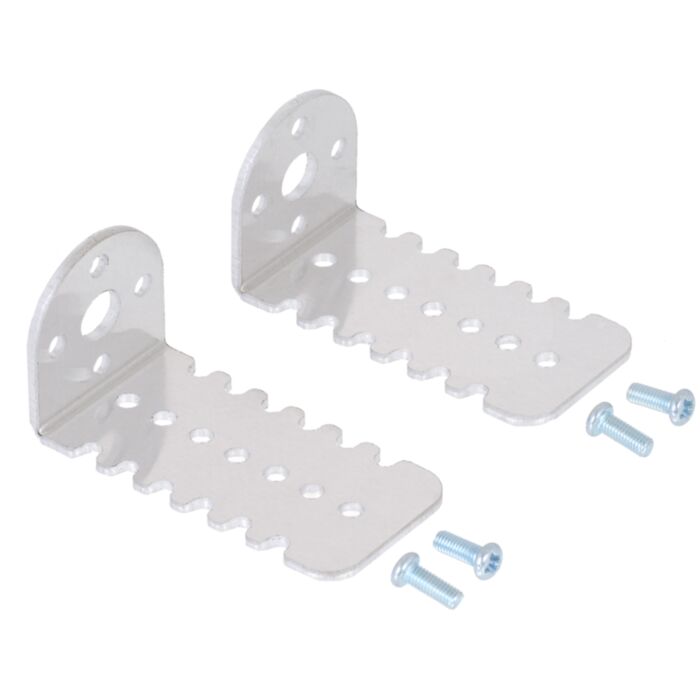

These aluminum gearmotor brackets let you securely mount Pololu’s 25D mm metal gearmotors to your project. The brackets are sold in pairs, and each bracket includes four M3 screws for securing the motor to the bracket. Each bracket also features seven mounting holes and twelve mounting slots for M3 or #4-size screws (not included), giving you a variety of mounting options.
$13.45 AUD, inc GST
$12.23 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Fri, 19th of Apr

Quantity Discounts:

  • 10-25 $11.86 (exc GST)
  • 25+ $11.62 (exc GST)
- +

1 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Pololu 25D mm gearmotor with bracket.

These light-weight brackets (8.5 g each) are specifically designed for the Pololu 25D mm metal gearmotors, including the same motors used in the Wild Thumper chassis. Each bracket features seven mounting holes and twelve mounting slots (six along each edge) for M3 or #4-size screws, giving you a variety of mounting options. A total of four M3 screws (two for each bracket) are included for securing the motors to the brackets.

Pololu's 4mm mounting hub works nicely with this bracket.

Dimension diagram for the #2676 Pololu 25D mm Metal Gearmotor Bracket. Units are mm over [inches].

This drawing is also available as a downloadable PDF (119k pdf).

Note: This product replaces Pololu's original 25D mm metal gearmotor bracket. This new version has been changed to use a mounting hole and slot spacing of 0.25" (6.35 mm); the original bracket had a hole/slot spacing of 0.245" (6.2 mm). To accommodate this change, the locations of the mounting holes and slots have changed, and the total number of slots on each side has been reduced from seven to six.

People often buy this product together with:

Pololu Universal Aluminum Mounting Hub for 4mm Shaft, #4-40 Holes (2-Pack)Pololu Universal Aluminum Mounting Hub for 4mm Shaft, #4-40 Holes (2-Pack)
Pololu Universal Aluminum Mounting Hub for 4mm Shaft, M3 Holes (2-Pack)Pololu Universal Aluminum Mounting Hub for 4mm Shaft, M3 Holes (2-Pack)
12mm Hex Wheel Adapter for 4mm Shaft (2-Pack)12mm Hex Wheel Adapter for 4mm Shaft (2-Pack)

Dimensions

Weight: 8.5 g1

Notes:

1
For a single bracket only (no screws or nuts).
