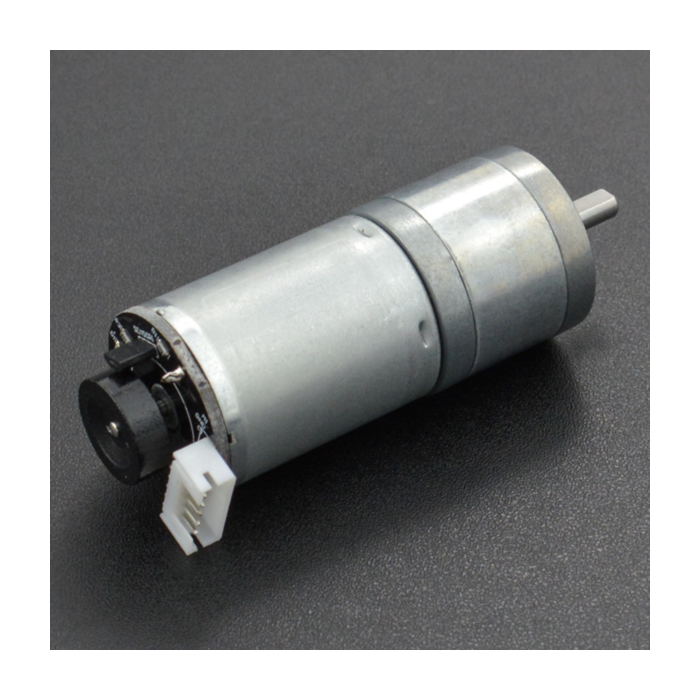

Metal DC Geared Motor w/Encoder - 6V 100RPM 6.5Kg.cm

SKU: FIT0522

$31.85 AUD, inc GST
$28.95 AUD, exc GST

More Views

Metal DC Geared Motor w/Encoder - 6V 100RPM 6.5Kg.cm
31.85 AUD

SKU: FIT0522

$31.85 AUD, inc GST
$28.95 AUD, exc GST
OR

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Introduction

This is a metal geared DC motor w/Encoder. It is a 6V motor with a 75:1 metal gearbox and an integrated quadrature encoder that provides a resolution of 11 counts per revolution of the motor shaft, which corresponds to 823.1 counts per revolution of the gearbox’s output shaft.

These units have an 10 mm length, 4 mm-diameter D-shaped output shaft. This motor is intended for use at 6V, though the motor can begin rotating at voltages as low as 1V. This motor is an ideal option for your mobile robot project.


Dimension

Specification

Motor Rated Voltage: 6V
Encoder Rated Voltage: 3.3 / 5V
Reducer Reduction Ratio: 1: 75
No load Speed: [email protected]
Maximum Efficiency Point: Load 1.0kg·cm/80RPM/1.7W/0.5A
Maximum Power point: Load 3.0kg·cm/55RPM/2.8W/1.0A
Stall Torque: 6.5kg·cm
Stall Current: 3.0A
Hall Resolution: Hall Resolution 11x Precision Reduction Ratio 74.83=823.1PPR
Dimension: 54 * Φ24.4 mm / 2.13 * Φ0.96inches
Weight: 96g

Documents

Pinmap

Parts List

Metal DC Geared Motor w/Encoder - 6V 100RPM 6.5Kg.cm x1
JST 6-Pin cable x1

Documentation and Resources:
