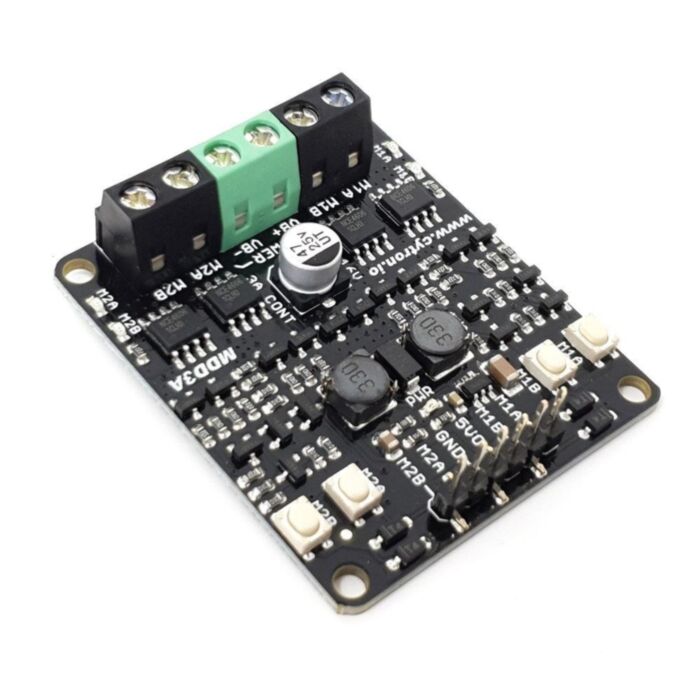

3A 4V-16V 2 Channel DC Motor Driver

SKU: CE08406 Brand: The Pi Hut

Looking for a motor driver for your robot? Want to drive a stepper motor? Worry not! This smart motor driver from Cytron is able to control two brushed DC...

$17.75 AUD, inc GST

$16.14 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

10-25 $15.49 (exc GST)
25+ $15.01 (exc GST)

Looking for a motor driver for your robot? Want to drive a stepper motor? Worry not! This smart motor driver from Cytron is able to control two brushed DC motors or a single bipolar/unipolar stepper motor from 4V to 16V.

With discrete MOSFETs H-Bridge design, this motor driver is able to support 3A per channel continuously without any additional heatsink.

The onboard test buttons and motor output LEDs allow functional tests of the motor driver in a quick and convenient way without hooking up the host controller.

The on-board buck-boost regulator produces 5V output from an input as low as 4V and can be used to power a host controller.

The driver can be controlled with wide input logic voltage range from 1.8V to 12V - compatible with a wide variety of host controller (e.g. Arduino, Raspberry Pi etc).

To prevent the motor driver from damage by reverse voltage (if the battery is connected in the wrong polarity) it is equipped with reverse polarity protection.

Features:

Bidirectional control for two brushed DC motors
Control one unipolar/bipolar stepper motor
Operating Voltage: DC 4V to 16V
Maximum Motor Current: 3A continuous, 5A peak
Buck-boost regulator to produce 5V output (200mA max).
Buttons for quick testing
LEDs for motor output state
Inputs compatible with 1.8V, 3.3V, 5V and 12V logic (Arduino, Raspberry Pi etc)
PWM frequency up to 20kHz (Output frequency is the same as input frequency)
Reverse polarity protection

User Guide

Click here to download
