MAX7219 Serial Dot Matrix Display Module

Rating:
100% of 100
SKU: CE05175 Brand: Core Electronics
These modules can be mounted flush side-by-side to extend them far beyond the 8x8 matrix. For example, you could have a 8x32 matrix! At the core is a MAX7219 - a very well documented chip in the Arduino community (along with ever other flavour of micro controller).
$2.40 AUD, inc GST
$2.18 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

  • 5-15 $2.14 (exc GST)
  • 15+ $2.07 (exc GST)
- +

42 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

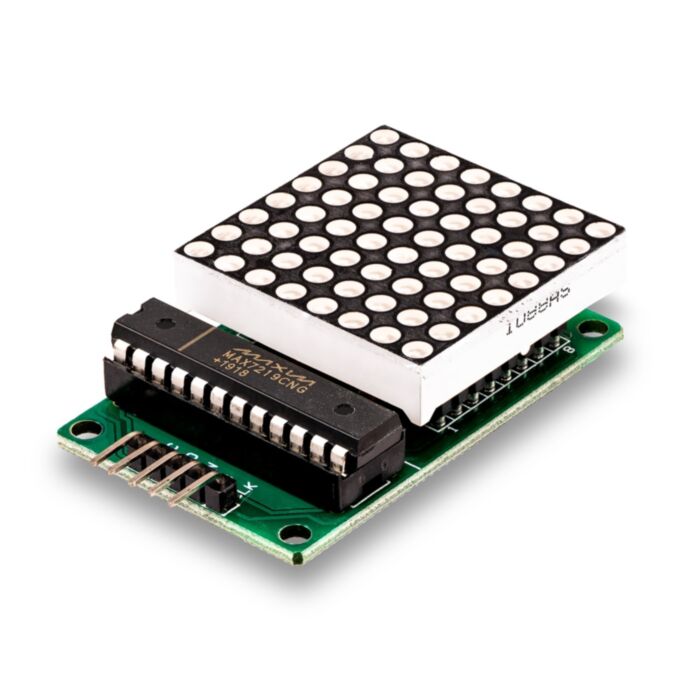

These modules can be mounted flush side-by-side to extend them far beyond the 8x8 matrix. For example, you could have a 8x32 matrix!

At the core is a MAX7219 - a very well documented chip in the Arduino community (along with ever other flavour of micro controller). You can find a good tutorial to get you up and running here.

Features

  • Each module includes a 8x8 common cathode LED matrix
  • Operating voltage: 5V
  • Size: 5 x 3.2 x 1.5 cm (L x W x H)
  • Four screws hole, aperture 3mm
  • Input and output interfaces, supports multiple modules cascade
  • IOs are clearly labelled on the board
  • Do not reverse VCC and GND - you'll burn the chip!

Contents

  • 1x Module (which includes the matrix display)
  • 1x Dupont wire assembly (20cm)
