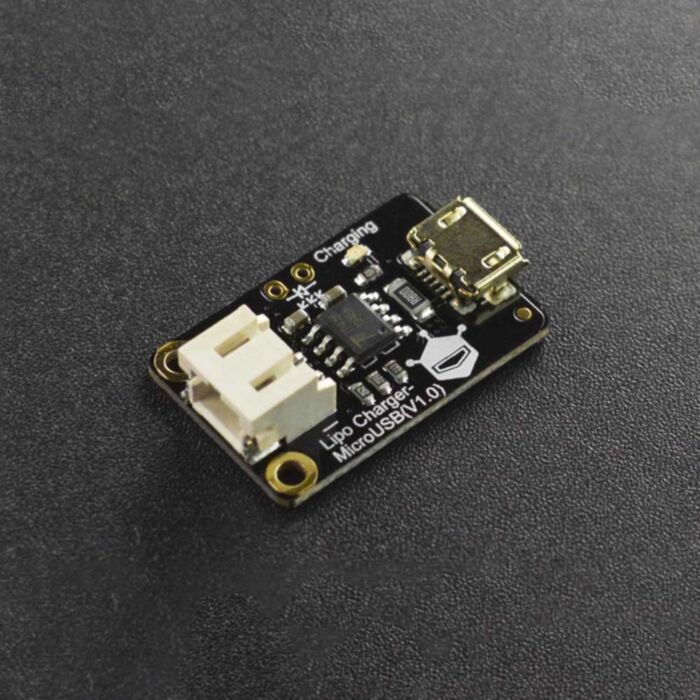

Lipo Charger-MicroUSB

Rating:

100% of 100

SKU: DFR0667 Brand: DFRobot

This Charger - MicroUSB is designed for single-cell 3.7V lithium battery. With its tiny body, you can easily integrate it into your applications. The charger adopts...

$9.90 AUD, inc GST

$9.00 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 30 and Jan 03

Quantity Discounts:

10-25 $8.64 (exc GST)
25+ $8.37 (exc GST)

This Charger - MicroUSB is designed for single-cell 3.7V lithium battery. With its tiny body, you can easily integrate it into your applications. The charger adopts TP4056X lithium battery charging IC, which guarantees you quick and safe charging. Three output current modes can be easily switched by selecting different bonding pads on the backside (The default output current is set to 50mA). The thermal feedback inside the TP4056X can automatically adjust the charging current to limit the chip temperature under high power operation or high ambient temperature conditions.

Plug this charger into power source via its micro USB port, the LED on the charger will flash when no battery is not connected; keep on when charging and go off when the battery is fully charged. So, this LED would consume nothing of your battery. Meanwhile, you could plug an external indicator so that it would be convenient to check the charging situation when the charger module is integrated into your applications.

There are 3 charging stages provided: trickle charge, constant current charge, and constant voltage charge, which guarantee the safety and save the time.

Note: Low current mode can be used to charge the large capacity battery, but high current mode cannot be used to charge the small capacity battery. The battery may explode if the charging current is too high.

Battery capacity	Recommended current
100-400mAh	50mA
400-1000mAh	200mA
1000mAh above	500mA

Features

Multiple current output modes (50/200/500mA)
Mini size
External indicator available
Safe and quick charging

Specification

Input Voltage: 5V
Charging Current: 50mA, 200mA, 500mA
Limited Charging Voltage: 4.2V±1%
Working Temperature: -40°C ~ 85°C
Dimension: 16.5 x 25mm/0.65 x 0.98”

Documents

Product wiki

Parts List

Lipo Charger - MicroUSB x1
