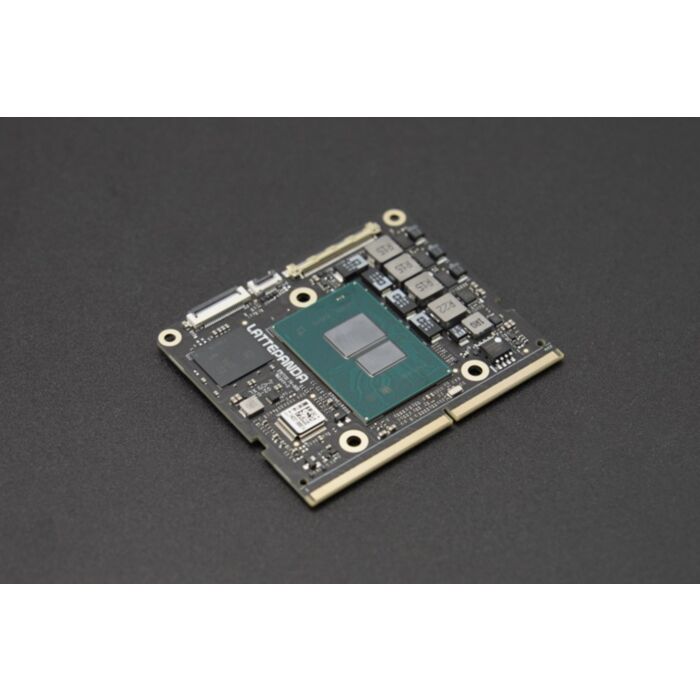

LattePanda Mu - A Micro x86 Compute Module (N100 CPU,8GB RAM,64GB eMMC)

SKU: DFR1146 Brand: DFRobot
LattePanda Mu is a card-sized x86 single-board computer. As a Computer On Module (COM) and System on Module (SoM). It supports Windows 10/11 and features...
Special Price $310.35 AUD, inc GST
Regular Price $319.95 AUD, inc GST
$290.86 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 18th of Nov

Quantity Discounts:

  • 3+ $276.32 (exc GST)
- +

1 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

LattePanda Mu is a micro x86 compute module featuring Intel N100 quad-core processor, 8GB LPDDR5 memory and 64GB storage. LattePanda Mu exposes extensive pins, including 3 HDMI/DisplayPort, 8 USB 2.0, up to 4 USB 3.2, up to 9 PCIe 3.0 lanes. These flexible ports and open-source carrier board files enable users to effortlessly design custom carrier boards to meet their unique requirements.

LattePanda Mu x86 compute module Kit





Small but Powerful

LattePanda Mu x86 compute module features Intel N100 quad-core processor with 3.4GHz turbo frequency, offering ample performance and multitasking capabilities for the majority of applications.

Equipped with an Intel Processor N100, LattePanda Mu compute module offers a multi-core score of 3115 and a single-core score of 1217 on Geekbench 6,outperforming the Raspberry Pi 5, Intel Celeron N5105, and Atom x5-Z8350. Its CPU performance doubles the Raspberry Pi 5.

LattePanda Mu x86 compute module 4 cores max 3.4GHz performance

LattePanda Mu x86 compute module outperforming benchmark



Card-Sized

Despite its small size of 69.6mm x 60mm,The pocket size of the LattePanda Mu N100 computer-on-module allows for integration into space-constrained devices, delivering powerful computation without occupying much space.



Card-Sized LattePanda Mu x86 compute module



Flexibility in Performance and Energy

The processor's TDP can be adjusted from 6W to 35W, providing flexibility in power usage and heat output.The 6W setting enables efficient operation with minimal heat and silent passive cooling, while the 35W setting offers robust performance but requires active cooling.



DFRobot provides three distinct cooling solutions:

Aluminum Active Cooler

Aluminum Fanless Heatsink

Aluminum Passive Thin Heatsink



LattePanda Mu x86 compute module Thermal Design Power



Flexible Expansion Pins

LattePanda Mu compute module exposes extensive pins, such as 3 HDMI/DisplayPort, 8 USB 2.0, up to 4 USB 3.2, 9 PCIe 3.0 lanes, 2 SATA 3.0 and 64 expandable GPIOs. This offers unparalleled flexibility and expandability, allowing you to create the specific solution.

LattePanda Mu x86 compute module with Rich Expansion Pins





Carrier Boards - Expanding Infinite Possibilities

DFRobot offers a lite carrier board for the LattePanda Mu, providing a comprehensive development platform with various interfaces for swift design verification. Additionally, a full-function evaluation carrier board is available, exposing all pins of the LattePanda Mu for extensive hardware and software testing.

Note: The PCIe slot of the lite carrier is available only when using a 12V power supply.



LattePanda Mu x86 compute module Carrier Boards



Making Carrier Simpler and Easier

LattePanda Mu x86 compute module offers open-source carrier board files and libraries as reference materials, enabling you to fine-tune the carrier board design to meet your specific needs, significantly reducing development time.

LattePanda Mu x86 compute module open-source carrier board files and libraries



Multi-System Support

LattePanda Mu x86 computer-on-module supports multiple operating systems,including Windows 10, Windows 11, Ubuntu, ensuring that there is always one that suits your needs.

LattePanda Mu x86 compute module supports multiple operating systems



Customized Solutions

LattePanda Team offers customized services, including customized carrier boards, boot screens, BIOS functionality, operating systems, etc.If you have any specific requirements, please feel free to contact us at [email protected].

The LattePanda Team is dedicated to providing timely and professional support to meet your customization needs.



LattePanda Mu x86 compute module offers customized solutions

Features

  • Intel Processor N100 (Up to 3.4GHz, 4-core, 4-thread)
  • Onboard 8GB 4800MHz LPDDR5 memory with IBECC supported
  • 64GB eMMC 5.1 storage
  • Configurable TDP: 6W ~ 35W
  • Multiple OS Support: Windows 10, Windows 11, Ubuntu
  • Rich Expansion Pins, including: 3 HDMI/DisplayPort, 8 USB 2.0, up to 4 USB 3.2, 9 PCIe 3.0 lanes, 2 SATA 3.0, 64 expandable GPIOs, etc.
  • Open-source Design Files (KiCAD) of Carrier Boards

Applications

Applications of LattePanda Mu x86 compute module - AI Interaction Robot and Handheld Device

Specification

  • Processor: Intel Processor N100 4 Cores up to 3.4GHz
  • Memory: LPDDR5 4800MT/s 8GB with IBECC supported
  • Storage: eMMC 5.1 64GB
  • Display: 3 Ouputs; Max Resolution 4096 x 2160@60Hz
  • I/O         PCIe 3.0: up to 9 lanes         SATA 3.0: up to 2 ports         USB 3.2 (10Gbps): up to 4 ports         USB 2.0 (480Mbps): 8 ports         I2C, UART and GPIOs
  • Power: 9~20V
  • Operating System: Windows, Ubuntu
  • Environment: 0~60°C; 0~80% relative humidity
  • Size: 69.6 x 60mm

Documents

Parts List

  • LattePanda Mu Compute Module x1
  • Product Manual x1
