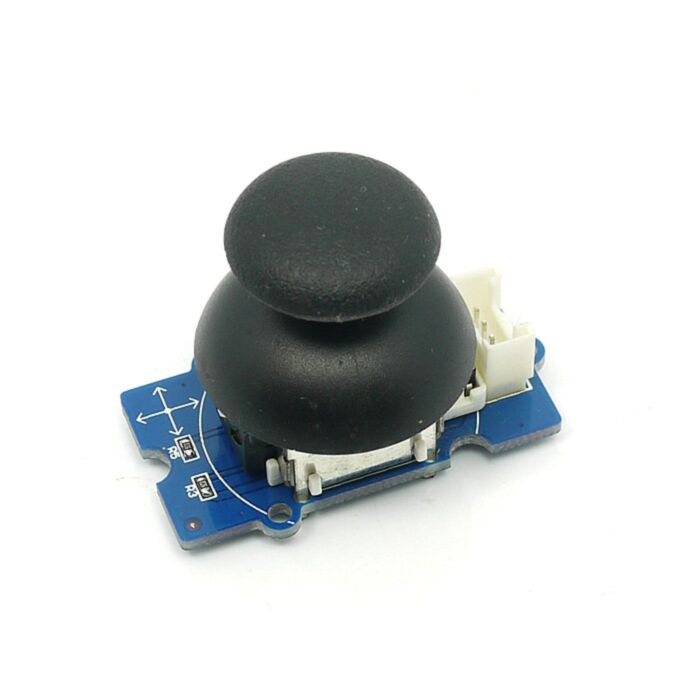

Grove - Thumb Joystick (Seeed Studio)

SKU: SS101020028 Brand: Seeed Studio

Grove - Thumb Joystick is a Grove compatible module which is very similar to the 'analog' joystick on PS2 (PlayStation 2) controllers. Two direction movements...

$11.20 AUD, inc GST

$10.18 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 03 and Dec 05

Quantity Discounts:

10-25 $9.77 (exc GST)
25+ $9.47 (exc GST)

Grove - Thumb Joystick is a Grove compatible module which is very similar to the 'analog' joystick on PS5 (PlayStation 5) controllers.

Features

Analog Output: Its output values are restricted to a smaller range (i.e. 200~800) and maximal value will be got when the button is pushed.
Support wide voltage: 5V/3.3V Compatible.
Grove unified socket: The product ensures "Plug and Play" and could be versatile for various applications.

Description

Grove - Thumb Joystick is a Grove compatible module which is very similar to the 'analog' joystick on PS5 (PlayStation 5) controllers. The X and Y axes are two ~10k potentiometers which control 2D movement by generating analog signals. The joystick also has a push button that could be used for special applications. When the module is in working mode, it will output two analog values, representing two directions. Compared to a normal joystick, its output values are restricted to a smaller range (i.e. 200~800), only when being pressed that the X value will be set to 1023 and the MCU can detect the action of pressing.

Application

Music console
Game controller
Remote controller for drones and carts

Specifications

Weight	G.W 17g
Battery	Exclude
Working Voltage	5V
Output Analog Value （X coordinate）	206 to 798
Output Analog Value （Y coordinate）	203 to 797

Part List

Grove - Thumb Joystick	1
Grove Cable	1
