Gravity: DHT20 Temperature & Humidity Sensor for Arduino

Add to Wish List

Skip to the beginning of the images gallery

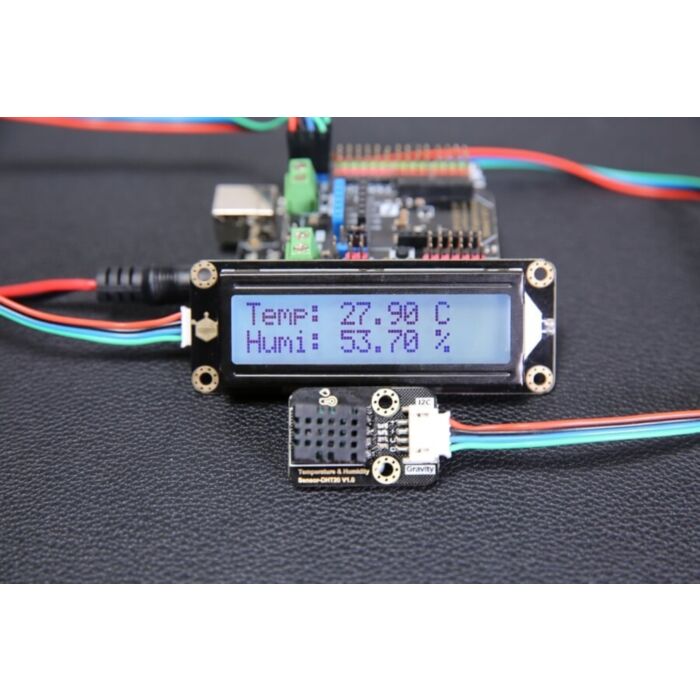

Gravity: DHT20 Temperature & Humidity Sensor for Arduino

SKU: SEN0497 Brand: DFRobot

DHT11 upgraded version, data accuracy, stability, response speed, measurement range are greatly improved up...

$12.95 AUD, inc GST

$11.77 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

10-25 $11.30 (exc GST)
25+ $10.95 (exc GST)

The DHT20 temperature & humidity sensor is the newly upgraded version of the DHT11.Data accuracy, stability, response speed, measurement range are greatly improved up.

DHT20 is a brand new ASIC dedicated chip, an improved MEMS semiconductor capacitive humidity sensor element and a standard on-chip temperature element. All sensors are factory calibrated and characterized by low power, high precision & stability, fast response, and strong anti-interference. Moreover, the DHT20 performance parameters of accuracy, power supply voltage, measurement range and response time have been enhanced greatly over the previous generation, making it more cost-effective.

Besides that, the DHT20 temperature & humidity sensor employs I2C digital output protocol, which is very suitable for HVAC, automobiles, data loggers, weather stations, home appliances, and other related temperature and humidity detection and controlled areas.

Application

Selection Guide

	Gravity: DHT11 Temperature & Humidity Sensor	Gravity: DHT22 Temperature & Humidity Sensor	Gravity: DHT20 Temperature & Humidity Sensor
SKU	DFR0067	SEN0137	SEN0497
Communication Method	One wire	One wire	I2C
Operating Voltage	3.3-5V	5V	3.3-5V
Temperature range ± error	0~+50 ± 2 °C	-40~+80 ± 0.5°C	-40~+80 ± 0.5°C
Humidity range ± error	20~90% ± 5%RH	0~100% ± 2%RH	0~100% ± 3%RH
	Classic temperature and humidity sensor, low price, suitable for designs with low accuracy requirements	High-precision temperature and humidity sensor, high price, high detection range and accuracy	High-precision temperature and humidity sensor, DHT11 upgrade version, the same price but improved performance, using I2C communication, data is more stable

Features

Factory calibration

I2C digital output

Quick response, strong anti-interference ability

Low power, low cost

Compatible with mainboards like Arduino, micro:bit, ESP32, Raspberry Pi

Compatible with 3.3~5.5V main controller

Applications

HVAC

Automobiles

Data loggers

Weather stations

Home appliances

Specification

Operating Voltage: 3.3V ~ 5.5V DC

Operating Current: <1mA

Output Signal: I2C (0×38)

Temperature Range: -40 ~ +80°C ±0.5°C

Humidity Range: 0~100%RH ±3%RH (25°C)

Resolution: 0.01°C, 0.024%RH

Storage Condition: 10°C-50°C, 20-60%RH

Board Dimension: 22*33 mm/0.87*1.30”

Mounting Hole Size: Inner diameter 3.1mm (0.13”)/Outer diameter 6 mm (0.24”)

Documents

Product wiki

Parts List

Temperature and Humidity Sensor x1

Gravity-4Pin I2C Sensor Connector (30cm) x1
