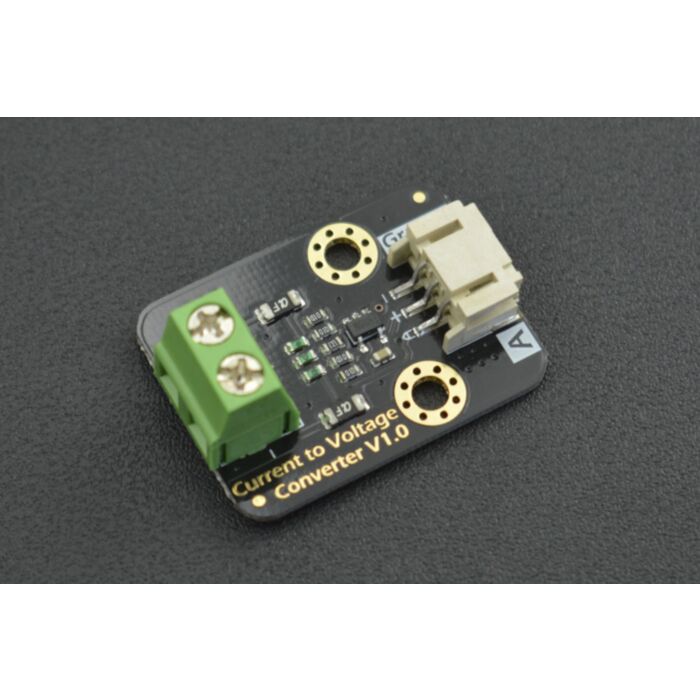

Gravity: Analog Current to Voltage Converter(for 4~20mA Application)

Rating:
100% of 100
SKU: SEN0262 Brand: DFRobot
This current-to-voltage module can linearly convert 0~25mA current signals into 0~3V voltage signals. Industrial sensors or devices usually have the current signal output of 4~20 mA. With this current-to-voltage module, your main control board can easily attain the current signals input from industrial sensors or devices.
$8.05 AUD, inc GST
$7.32 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

  • 10-25 $7.03 (exc GST)
  • 25+ $6.81 (exc GST)
- +

1 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This current-to-voltage module can linearly convert 0~25mA current signals into 0~3V voltage signals. Industrial sensors or devices usually have the current signal output of 4~20 mA. With this current-to-voltage module, your main control board can easily attain the current signals input from industrial sensors or devices.

Normally, current signals lower than 4mA can be used for fault diagnosis, and current signals higher than 20mA can be used for overrun detection. Therefore, this module is specially designed with a wide detection range from 0 to 25mA, and compatible with fault detection, overrun detection applications.

This module employs 0.1% high precision sense resistor and ultra-low noise rail-to-rail zero-drift op amp, high accuracy, no need to calibration, so it is convenient to use. 3.3V~5.5V wide voltage power supply, 0~3V voltage signal output, which are compatible with more main control boards, adapt to more applications.

NOTE: For higher accuracy, it is recommended to measure with 12 or more bit ADC!

Features

  • Support wide voltage of 3.3~5.5V
  • Deploy 0.1% high precision sense resistor and ultra low noise rail-to-rail zero-drift op amp, high accuracy, and no need to calibration
  • Wide measurement range up to 0~25mA, which is compatible with fault diagnosis, overrun detection applications

Specifications

  • Supply Voltage: 3.3~5.5V
  • Detection Range: 0~25mA DC
  • Measurement Accuracy: ±0.5% F.S. @ 16-bit ADC, ±2% F.S. @ 10-bit ADC
  • Termination Resistance: 120Ω
  • Connector Type: PH2.0-3P
  • Product Size: 30mm * 22mm (1.18inch * 0.87inch)

Documentation

Contains

  • 1x Analog Current to Voltage Converter
  • 1x Digital Sensor Cable 3pin
