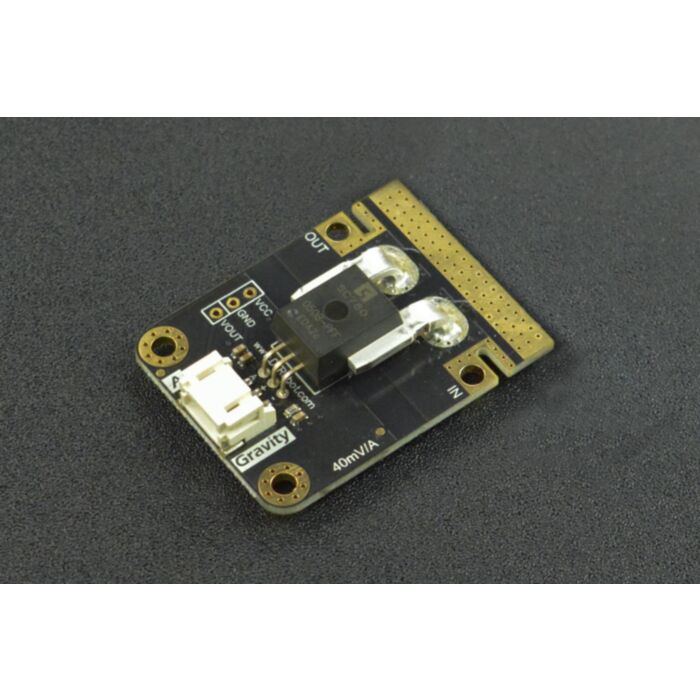

Gravity: Analog Current Sensor 50A (AC/DC) V2

Rating:

100% of 100

SKU: SEN0098-V2 Brand: DFRobot

This fully integrated Hall Effect based linear SC780 current sensor gives precise measurement for both AC and DC currents up to 50A, suitable for...

$26.10 AUD, inc GST

$23.73 AUD, exc GST

Available with a lead time
Expect dispatch between May 13 and May 20

Quantity Discounts:

10-25 $23.02 (exc GST)
25+ $22.55 (exc GST)

Get this low-power current sensor to monitor your project every second for saving energy or protecting the circuit!

This fully integrated Hall Effect-based linear SC780 current sensor gives precise measurement for both AC and DC currents up to 50A. The thickness of the copper conductor allows the survival of the device at high over-current conditions.

The SC780 can output an analog voltage signal that varies linearly with sensed current.

The input and output are designed as through-hole vias and slots, which allow for soldering thick electrical wires and T-shaped connectors. The polarity of the input power is clearly labeled on the board so users can conveniently solder wires or use metal alligator clips to make the electrical connections.

The current sensor features enhanced heat dissipation and circuit-protection functions, which typically can be applied to scenarios such as motor control, load detection & management, aeromodelling, and robot over-current detection.

Connection Diagram

Deans Connector Fitment

Features

Gravity Interface
Features cutouts in the PCB to fit 2 high-current Deans Connectors
Capable of measuring AC and DC currents
Hall current sensor
Isolated current measurement
The low current impedance of 0.08mO
Low-hysteresis magnetic core
Interference-free for magnet wire, external magnetic field, and geomagnetic field

Applications

Motor Control
Load Detection & Management
Aeromodelling and Robot Over-current Detection

Specification

Operating Voltage: 5V
Signal Type: Analog
Withstand Voltage in Measuring: 50V(AC) / 120V(DC)
Current Measurement Range: -50A to 50A
Signal Bandwidth: 80kHz
Response Time: 3.64µs
Operating Temperature: -40°C to 125°C
Dimension: 32×42mm/1.26×1.65"

Documents

Parts List

Gravity: Analog Current Sensor 50A (AC/DC) ×1
Gravity 3P Connector ×1
