Fermion: VL53L3CX ToF Distance Ranging Sensor (Breakout)

SKU: SEN0378 Brand: DFRobot

The VL53L3CX is the latest Time-of-Flight (ToF) product from STMicroelectronics and embeds ST’s third-generation FlightSense technology. With the improved detection...

$15.85 AUD, inc GST

$14.41 AUD, exc GST

Available with a lead time
Expect dispatch between Jul 09 and Jul 14

Quantity Discounts:

10+ $13.84 (exc GST)
25+ $13.40 (exc GST)

The VL53L3CX is the latest Time-of-Flight (ToF) product from STMicroelectronics and embeds ST’s third-generation FlightSense technology. With the improved detection accuracy, the sensor features a 25~3000mm sensing range, automatic smudge correction, and glass cross-talk immunity. With special algorithms and ingenious module construction, the VL53L3CX is also able to detect different objects within the field of view (FoV) with depth understanding.

Note 1: The product has only been verified on M0 and ESP32 due to the large size of its algorithm files.

Note 2: Multi-target distance measurement can only be triggered under certain conditions. Please refer to their official Web for more details.

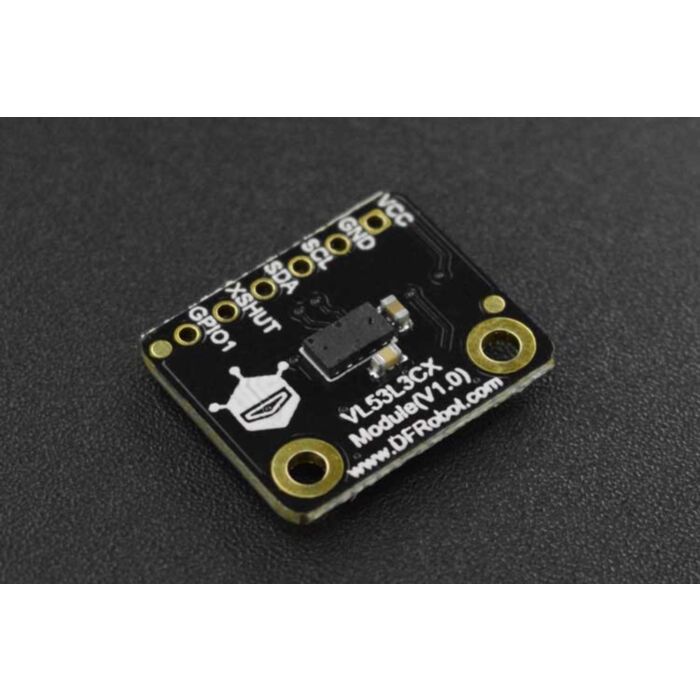

Board-Overview

Features

High accuracy distance measurement
Long-distance and accurate ranging up to 300 cm
Typical full FoV 25°
Multi-target distance ranging
Immune to glass cross-talk
Smudge compensation function

Specification

Power Supply: 3.3V~5V
Operating Current: <20mA
Detection Range: 25-3000mm
Emitter: 940nm invisible laser(VCSEL)
FOV: 25°
I2C Address: 0x29
Operating Temperature Range: -20°C ~ 85°C
Dimension: 18x15mm/0.71x0.59"

Documents

Product wiki

Parts List

Fermion:VL53L3CX ToF Distance Ranging Sensor(Breakout) x1
2.54-6P Black Single Row Connector x1
