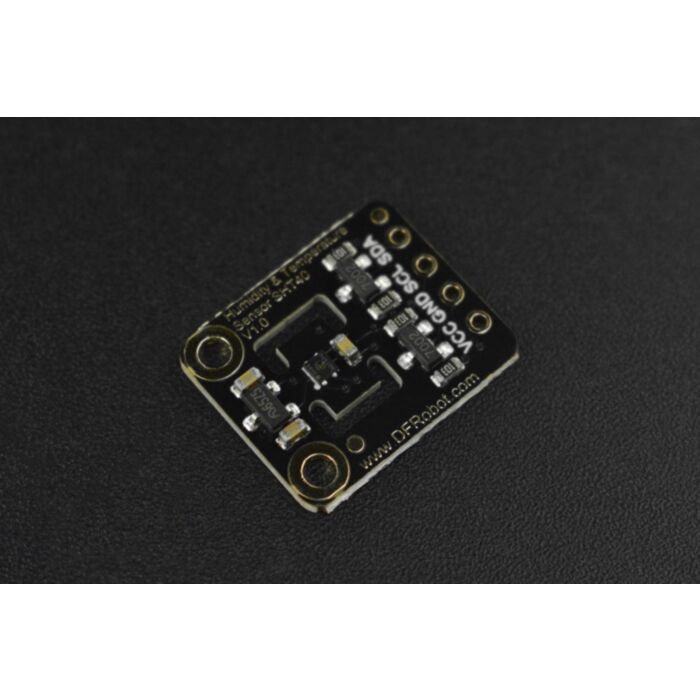

Fermion:SHT40 Humidity & Temperature Sensor (Breakout)

SKU: SEN0428 Brand: DFRobot

The SHT4X is the 4th generation digital temperature and humidity sensor from Sensirion. In line with Sensirion’s industry-proven humidity and temperature...

$15.75 AUD, inc GST

$14.32 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Quantity Discounts:

10+ $13.75 (exc GST)
25+ $13.32 (exc GST)

The SHT4X is the 4th generation digital temperature and humidity sensor from Sensirion. In line with Sensirion’s industry-proven humidity and temperature sensors, the SHT40 offers consistent high accuracy within measuring range.

The SHT40 sensor covers a humidity measurement range of 0 to 100%RH and a temperature detection range of -40°C to 125°C with a typical accuracy of ±1.8%RH and ±0.2%. The internal variable power heater enables the device to work properly under extreme operating conditions like condensing environment.

The board supply voltage of 3.3V to 5V and an current consumption below 0.15mA in low power mode make the SHT40 perfectly suitable for mobile or wireless battery-driven applications. It is suitable for urban environment monitoring, intelligent buildings, industrial automation, smart home and other Internet of Things applications.

Features

High Accuracy
Low Power Comsumption
Small Size
Fast Response

Applications

Intelligent Buidings and Furniture
Weather Station
Warehouses
Animals and Plants Culture
Animal Incubator
Germinating Box for plant seed

Specification

Operating Voltage: 3.3V-5V
Operating Current: 0.45mA
Communication Interface: I2C
Response Time: 8s (tau63%)
Humidity Measurement Range: 0~100%RH
Humidity Measurement Accuracy: ±1.8%
Temperature Measurement Range: -40°C ~ +125°C (-40°F to +275°F)
Temperature Measurement Accuracy: ±0.2°C
Dimension: 14x17mm/0.55x0.67"
Mounting Hole Size: M2 (2mm)
Mounting Hole Pitch: 10mm

Documents

Parts List

Fermion:SHT40 humidity & temperature sensor x1
