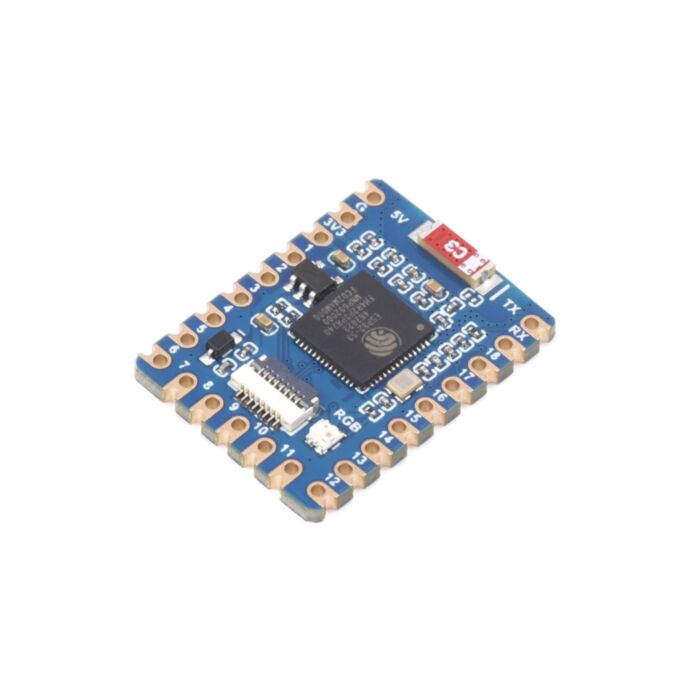

ESP32-S3 Mini Development Board

SKU: WS-27069 Brand: Waveshare
ESP32-S3 Mini Development Board, Based on ESP32-S3FH4R2 Dual-Core Processor, 240MHz Running Frequency, USB Port Adapter Board Optional...
$8.25 AUD, inc GST
$7.50 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

  • 10-25 $7.27 (exc GST)
  • 25+ $7.13 (exc GST)
- +

2 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The device is equipped with an ESP32-S3FH4R2 chip featuring a dual-core Xtensa 32-bit LX7 processor, running at up to 240MHz. It includes 512KB of SRAM, 384KB of ROM, and has 2MB PSRAM and 4MB Flash memory onboard. It supports 2.4GHz Wi-Fi and Bluetooth LE. There's an onboard FPC 8PIN connector that can connect to a USB Type-C port adapter board. The device has 34 multi-function GPIO pins and offers interfaces such as SPI, I2C, UART, ADC, and PWM for various functions. It also supports multiple low-power states, allowing adjustment of communication distance, data rate, and power consumption to fit different needs.

Note: This board does not come with the USB Adapter Board.  The ESP32-S3 Mini Development Board with USB Adapter Board is available here

What's On Board

What's on board

  1. ESP32-S3dual-core processor, up to 240MHz operating frequency
  2. ME6217C33M5G low dropout LDO, 800mA (Max)
  3. FPC connector0.5mm pitch 8PIN
  4. WS2812 RGB LED
  5. GPIO pins



Pinout

ESP32-S3-Tiny, pin definition

Dimensions

ESP32-S3-Tiny outline dimensions

Resources

Shipping List

  • 1 x ESP32-S3-Tiny
