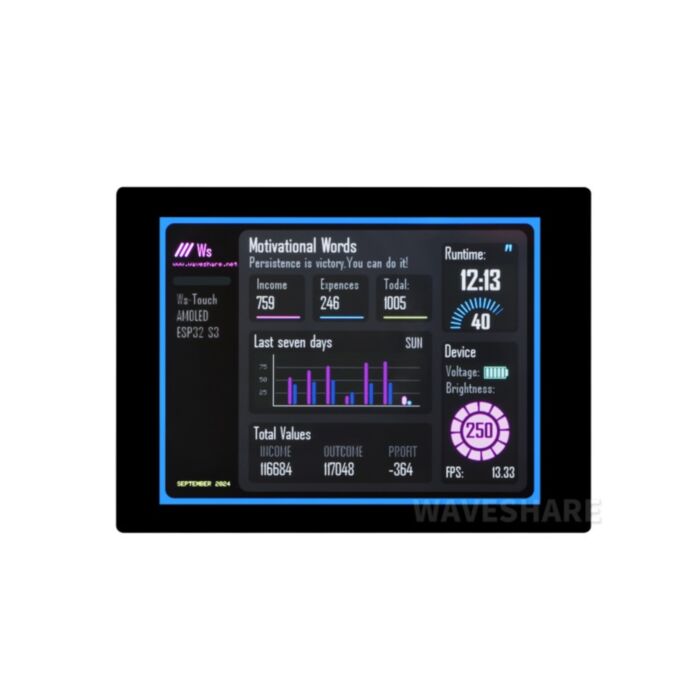

ESP32-S3 2.41inch AMOLED Touch Display Development Board

SKU: WS-30589 Brand: Waveshare

ESP32-S3 2.41inch AMOLED Touch Display Development Board, 600×450, 32-bit LX7 Dual-core Processor, Onboard Accelerometer And Gyroscope Sensor, ESP32 With...

Special Price $68.15 AUD, inc GST

Regular Price $91.39 AUD, inc GST

$61.95 AUD, exc GST

Special pricing ends 12 August 2025

* this special may end earlier than shown

Available with a lead time
Expect dispatch between May 26 and May 27

ESP32-S3 2.41inch AMOLED Touch Display Development Board, 600×450, 32-bit LX7 Dual-core Processor, Onboard Accelerometer And Gyroscope Sensor, ESP32 With Display ESP32-S3 2.41" AMOLED
Touch Display Development Board

Embedded with RM690B0 Display Driver and FT6336 Capacitive Touch Chip

Features

This product uses a ESP32-S3R8 chip with 2.4GHz WiFi and Bluetooth BLE 5 support, and integrates high-capacity Flash and PSRAM. Onboard 2.41inch AMOLED display capable of smoothly running GUI programs such as LVGL. Onboard rich peripheral resources such as RTC chip, QMI8658 6-axis IMU, TF card slot, Lithium battery header, etc., while also providing USB, UART, I2C and 34PIN GPIO header for strong compatibility and expandability. It is ideal for the quick development of the HMI and other ESP32-S3 applications.

Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with an onboard antenna. The device allows switching to an external antenna by resoldering an onboard resistor
Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
Onboard 2.41inch AMOLED display, QSPI interface, 600 × 450 resolution, 16.7M color
Supports capacitive touch function, controlled via I2C interface, with interrupt support
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for motion gesture detection, step counting, and more
Onboard PCF85063 RTC chip with a reserved SH1.0 RTC battery header (supports charging) for RTC functionality
Onboard RST button, along with programmable BOOT and PWR buttons for customizable functionality and flexible development
Onboard 3.7V MX1.25 Lithium battery recharge/discharge header
Onboard TF card slot, enabling external storage for pictures or files
Onboard USB Type-C port for power supply, program downloading, and debugging, making development more convenient
Onboard UART and I2C SH1.0 4PIN connectors, with a reserved 34PIN 2.54mm pitch GPIO header for expandability
Optional for protection case, with clear and colorful label on the back, nice looking and easy to carry

AMOLED parameters

Display Panel: AMOLED
Display Size: 2.41 inches
Resolution: 600 × 450
Display Colors: 16.7 million (16.7M)
Brightness: 800 cd/?
Contrast Ratio: 100,000:1
Communication Interface: QSPI
Driver IC: RM690B0
Touch IC: FT6336

Pinout

What's Onboard

Dimensions

Documents

Wiki
