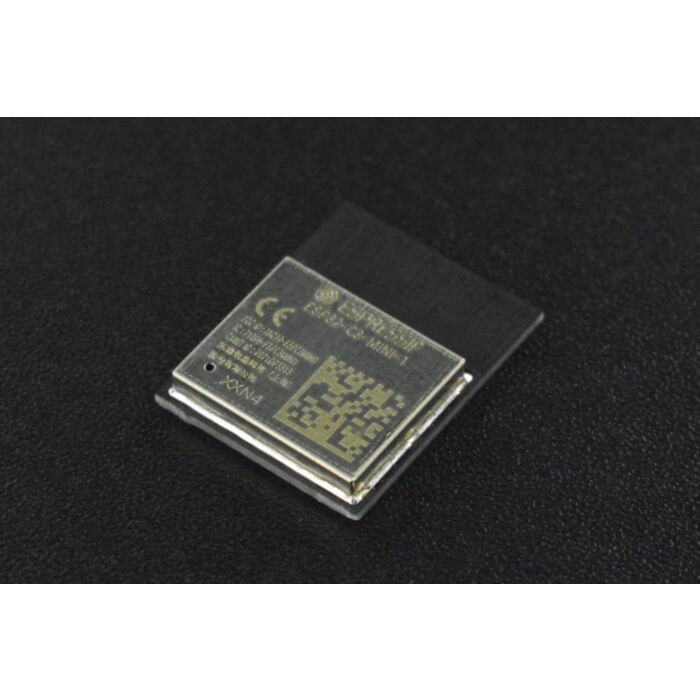

ESP32-C3-MINI-1-N4 Module (PCB antenna)

SKU: DFR0809 Brand: DFRobot

ESP32-C3-MINI-1 are a general-purpose Wi-Fi and Bluetooth LE modules. The rich set of peripherals and a small size make the two modules an ideal choice...

$8.24 AUD, inc GST

$7.49 AUD, exc GST

Available with a lead time
Expect dispatch between May 23 and May 29

Quantity Discounts:

10-25 $7.26 (exc GST)
25+ $7.12 (exc GST)

Introduction

ESP32-C3-Mini-1 is a universal Wi-Fi and low power Bluetooth LE module. The rich set of peripherals and a small size make the two modules an ideal choice for smart homes, industrial automation,health care, consumer electronics, etc.

ESP32-C3-MINI-1-N4 is equipped with ESP32-C3FN4 chip and equipped with 4 MB embedded flash, belonging to esp32-C3 series chip. ESP32-C3 series of chips have a 32-bit RISC-V single-core processor. They integrate a rich set of peripherals, ranging from UART, I2C, I2S, remote control peripheral, LED PWM controller, general DMA controller, TWAI® controller, USB Serial/JTAG controller, temperature sensor, and ADC. It also includes SPI, Dual SPI and Quad SPI interfaces.

Pin Layout

ESP32-C3-MINI-1-N4 Module (PCB antenna)

Pin Description

Name	No.	Type	Function
GND	1,2,11,14,36-53	P	Ground
3V3	3	P	Power supply
NC	4,7,9,10,15,17,24,	—	NC
25,28,29,32-35
IO2	5	I/O/T	GPIO2,ADC1_CH2,FSPIQ
IO3	6	I/O/T	GPIO3,ADC1_CH3
EN	8	I	High: on, enables the chip.
Low: off, the chip powers off.
Note: Do not leave the EN pin floating.
IO0	12	I/O/T	GPIO0,ADC1_CH0,XTAL_32K_P
IO1	13	I/O/T	GPIO1,ADC1_CH1,XTAL_32K_N
IO10	16	I/O/T	GPIO10,FSPICS0
IO4	18	I/O/T	GPIO4,ADC1_CH4,FSPIHD,MTMS
IO5	19	I/O/T	GPIO5,ADC2_CH0,FSPIWP,MTDI
IO6	20	I/O/T	GPIO6,FSPICLK,MTCK
IO7	21	I/O/T	GPIO7,FSPID,MTDO
IO8	22	I/O/T	GPIO8
IO9	23	I/O/T	GPIO9
IO18	26	I/O/T	GPIO18,USB_D-
IO19	27	I/O/T	GPIO19,USB_D+
RXD0	30	I/O/T	GPIO20,U0RXD
TXD0	31	I/O/T	GPIO21,U0TXD

Specification

ESP32-C3FN4 embedded,32-bit RISC-V single-core processor, up to 160 MHz

384 KB ROM

400 KB SRAM

8 KB RTC SRAM

4 MB SPI flash

Operating Voltage/Power Supply: 3.0~3.6V

Operating Temperature Range: –40~85°C
