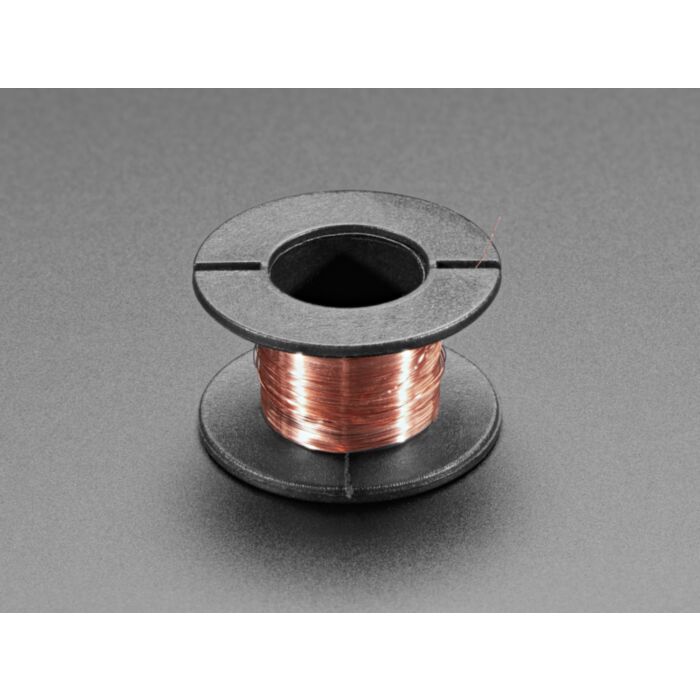

Enameled Copper Magnet Wire – 11 meters / 0.1mm diameter

Rating:

100% of 100

SKU: ADA3522 Brand: Adafruit

For winding custom coils, or very fine-pitch rework, Adafruit always reach for magnet wire. Magnet wire is very very thin (0.1mm diameter!) copper wire with a very thin...

$2.25 AUD, inc GST

$2.05 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

10-25 $1.96 (exc GST)
25+ $1.90 (exc GST)

For winding custom coils, or very fine-pitch rework, Adafruit always reach for magnet wire. Magnet wire is very very thin (0.1mm diameter!) copper wire with a very thin layer of insulation. It's used for a range of electronics, hacking and making applications. Commonly these are used for winding transformers, inductors, motor or solenoid coils, speakers, hard disk head actuators, electromagnets, pickups, among other things. However, this wire is also really good for when you have to do PCB repair, jumper wires, or solder directly to SMT pads.

This spool is ~11.5 meters of ~38 AWG thick magnet wire, just enough to do a few projects. Adafruit recommend a spool for every engineer's workbench. Like all magnet wire there is a thin enameled insulation. Some people like to remove it with a small flame (from a lighter, say) but Adafruit have found that an easy way to remove it is to melt a blob of solder onto your iron and then dip the end into the blob for a few seconds. Remove the wire and it'll be both cleaned off and tinned!

Technical Details

Diameter: 0.1mm
Spool weight: 4.2g
Wire length: ~11.5m / 450"

This product is listed in:

Wire>Solid Core
