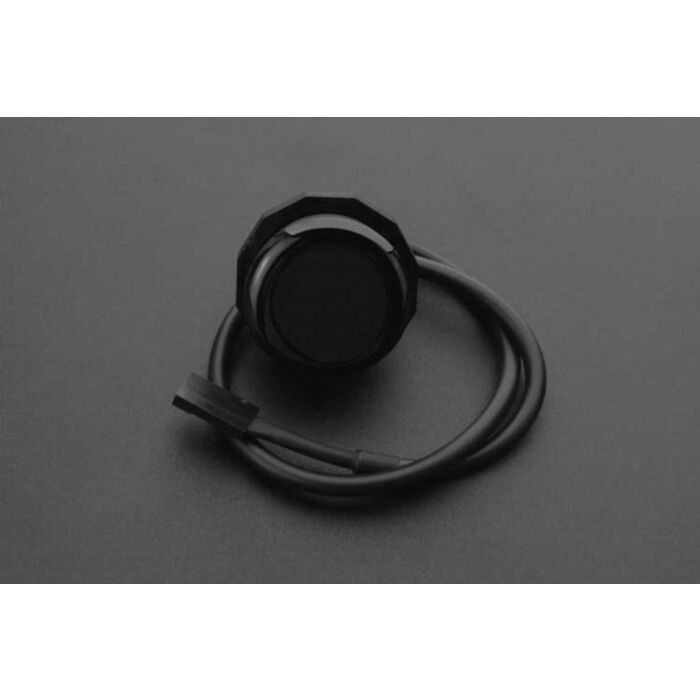

Digital IR Proximity Sensor (0-200cm)

Rating:

100% of 100

SKU: SEN0381 Brand: DFRobot

This is a digital IR Proximity Sensor with button and indicator. It provides adjustable detection distance within 0 to 200cm and comes with real-time status feedback...

$23.30 AUD, inc GST

$21.18 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Quantity Discounts:

10+ $20.34 (exc GST)
25+ $19.70 (exc GST)

This is a digital IR Proximity Sensor with button and indicator. It provides adjustable detection distance within 0 to 200cm and comes with real-time status feedback. Press down the button, then the indicator starts to flash, this time the detection distance can be adjusted. The sensor will auto detect and save the distance between it and obstacles ahead. In addition, this sensor is equipped with 3PIN data cable (digital signal output) that can be directly plugged into an Arduino IO expansion board. The product can be widely used in applications like smart home, house security, intelligent detection and control, robot obstacle, and so on.

The sensor is based on the principle of diffuse reflection of IR light on objects. When a person or object enters the sensing range in front of the sensor, the sensor immediately determines that there is induction, so as to control the output signal; after the person or object leaves the sensing range, it will judge that there is no induction, and stop signal output, by which intelligent control can be achieved.

SEN0381-desc-1

Features

Wide range of applications
Onboard button for detection distance adjustment

Specification

Power Supply: 5V
Detection Distance: 0~200cm(adjustable)
Output: switch quantity(active-high)
Detection Angle: 30-40°coning angle
Detection Mode: active
Operating Temperature: -10~60°C
Storage Temperature: -20°~70°C
Waterproof Performance: IP67
Output Pullup: ~10K (pull this down with an 18K resistor if you're using this with a 3.3V micro)

Documents

Product wiki

Shipping List

Digital IR Proximity Sensor(0-200cm) x1
