3kg Beam Load Cell

Rating:
100% of 100
SKU: CE08423 Brand: Core Electronics

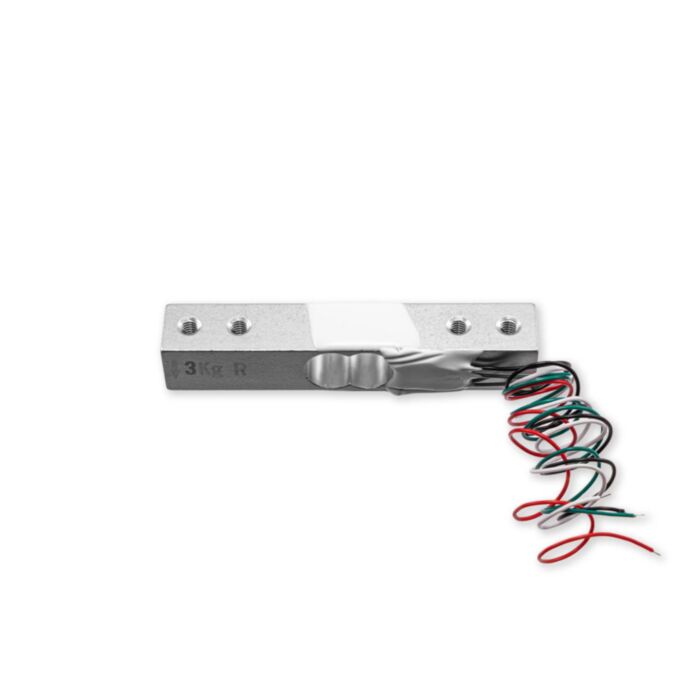

A 3kg bar load cell, perfect for weighing small objects!

$4.95 AUD, inc GST
$4.50 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 27th of Feb

Quantity Discounts:

  • 10-25 $4.32 (exc GST)
  • 25+ $4.18 (exc GST)
- +

459 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This load cell is perfect for measuring objects up to 3 kg.

The integrated Wheatstone Bridge inside this load cell varies the resistance as one side is loaded, and ensures it doesn't fluctuate with temperature. The downside to this is that you need a special Load Cell Amplifier to read its tiny variances easily with a microcontroller.

Specifications

  • Rated for 3kg - highest accuracy at 1.5kg (half of the rated force)
  • Dimensions: 12.7 mm x 12.7 mm x 75mm
  • Mounting points: 10 mm between holes suited for M4 bolts (5.5mm from edge)
  • Wire length: 230 mm
Wire colour Function
Red Power +
Black Power -
Green Signal +
White Signal -



Need to measure a larger or smaller force? We have 1kg, 3kg, 10kg and 20kg variants.
