Search results for: '2 pin terminals'

Perfect for all Makers, these 2-Pin Screw Terminal Blocks allow you to secure a range of wire gauges.

These side-entry screw terminal blocks have a pitch of 0.1" (2.54 mm), and can be used as alternatives to standard 0.1" male or female headers on many...

These side-entry screw terminal blocks have a pitch of 5 mm (0.197″). Each block has two terminals for the stripped ends of 22 – 14 AWG wires, and units can slide together to make longer strips. They are rated for 250 V, 16 A (UL) and ship in packs of four.

These are simple 2-position screw terminals with 2.54mm pitch pins. Rated up to 150V @ 6A, this terminal can accept 30 to 18AWG wire. The 2.54mm pitch will line up with standard 0.1" perf boards.

These side-entry screw terminal blocks have a pitch of 3.5 mm (0.138″). Each block has two terminals for the stripped ends of 24 – 18 AWG wires, and units can slide together to make longer strips. They are rated for 125 V, 10 A (UL) and ship in packs of four.

Screw Terminals with 5mm pitch pins. Comes in 2 or 3 positions and have the really cool feature of slide-locking together to form any size you need (4, 5, up to 20 without problems). Rated up to 300V @ 8A. Terminal can accept 26 to 14AWG wire. 5mm/197mil pin pitch will line up well with standard 0.1" perf boards but the pins are thick enough (1.0mm OD) that you may need to increase the hole diameter on some perf boards.

Screw Terminals with 3.5mm pitch pins. Comes in 2 or 3 positions and have the really cool feature of slide-locking together to form any size you need (4, 5, up to 20 without problems). Rated up to 125V @ 6A. Terminal can accept 30 to 20AWG wire. 3.5mm/138mil pin pitch will not fit standard 0.1" perf boards but this is the most common pitch screw terminal.

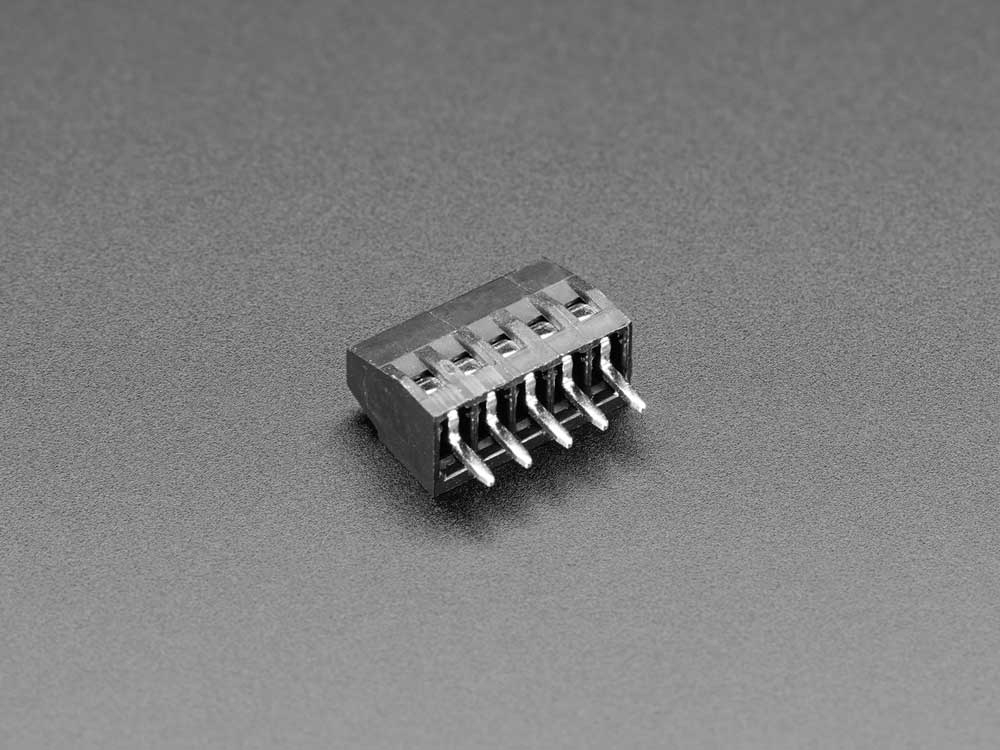

After a long day out harvesting in the terminal block fields, Adafruit have returned with a veritable bounty of these very nice and compact 2.54mm/0.1" terminal blocks in a variety of sizes

Nothing makes a project harder to maintain than a lot of loose wiring. That's why Adafruit like to use terminal blocks whenever making PCB-to-Wire connections. These particular...

This is a high quality 2-pin screw terminal. Very useful when you want to connect 24-18AWG wires to your circuits.

These top-entry screw terminal blocks have a pitch of 5 mm (0.197″). Each block has two terminals for the stripped ends of 22 – 14 AWG wires, and units can slide together to make longer strips. They are rated for 250 V, 16 A (UL) and ship in packs of four.

These top-entry screw terminal blocks have a pitch of 3.5 mm (0.138″). Each block has two terminals for the stripped ends of 24 – 18 AWG wires, and units can slide together to make longer strips. They are rated for 125 V, 10 A (UL) and ship in packs of four.

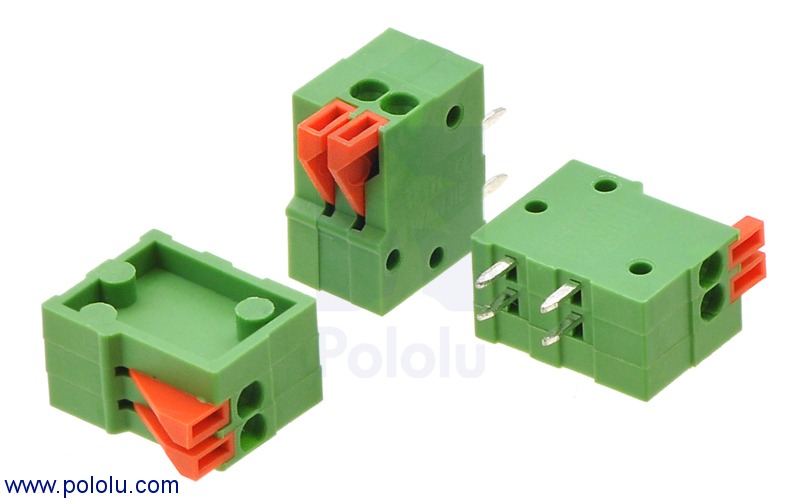

These side-entry screwless terminal blocks have a pitch of 0.1″ (2.54 mm). Each block has two spring terminals that automatically grip the stripped ends of inserted 26 – 18 AWG wires, allowing for easy, temporary connections to your PCB, and units can be combined to make longer blocks. They are rated for 150 V, 2 A (UL) and ship in packs of three.
