Screw Terminal Block: 2-Pin, 5 mm Pitch, Top Entry (4-Pack)

Rating:

100% of 100

SKU: POLOLU-2442 Brand: Pololu

These top-entry screw terminal blocks have a pitch of 5 mm (0.197″). Each block has two terminals for the stripped ends of 22 – 14 AWG wires, and units can slide together to make longer strips. They are rated for 250 V, 16 A (UL) and ship in packs of four.

$3.30 AUD, inc GST

$3.00 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

10-25 $2.88 (exc GST)
25+ $2.79 (exc GST)

These terminal blocks have terminals that hold and release wires through the simple adjustment of a screw, allowing you to easily make temporary connections to a PCB. The 2-pin and 3-pin units each feature a ridge on one side and a slot on the other, which lets them slide and lock together to form arbitrarily long strips with a pitch of 3.5 mm or 5 mm. Each terminal block is available in two orientations: side-entry and top-entry.

The following short video gives a quick overview of how to install these terminal blocks onto Pololu's boards:

Details for item #2442

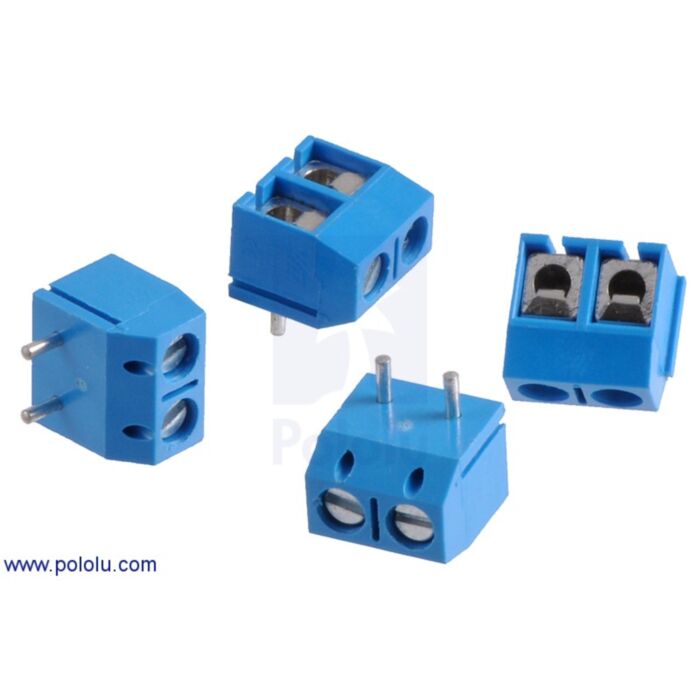

This product is a four-pack of 5mm-pitch, two-pin, top-entry terminal blocks. The more general dimension diagram for an XX-pin version of this screw terminal block is shown below.

Screw terminal block: 5 mm pitch, top entry.

Voltage rating (UL/IEC): 250/250 V
Current rating (UL/IEC): 16/24 A
Contact resistance: 20 mO
Wire gauge: 22-14 AWG
Wire strip length: 5 mm

Other terminal block options

Pololu carry several different sizes and styles of terminal blocks in addition to these stackable screw terminal blocks; the picture below shows a side-by-side comparison:

Side-by-side comparison of Pololu's different terminal blocks with a 0.1" male header strip for size reference. From left to right: 0.1" screwless, 0.1" screw, 3.5 mm screw, and 5 mm screw.

Screwless (spring) terminal, available in side- and top-entry orientations with pitches of 0.1" and 0.2":

Alternatives available with variations in these parameter(s):pins spacing orientationSelect variant…

0.1" screw terminal, which can be used in place of standard 0.1"male and female headers on many PCBs; the only available orientation is side-entry:

Alternatives available with variations in these parameter(s):pinsSelect variant…

People often buy this product together with:

0.100" (2.54 mm) Breakaway Male Header: 1×40-Pin, Straight, Black

Female Crimp Pins for 0.1" Housings 100-Pack

Screw Terminal Block: 3-Pin, 5 mm Pitch, Side Entry (4-Pack)

Dimensions

Pins:	2
Spacing:	5 mm

General specifications

Wire gauge:	22-14 AWG
Current rating:	16 A¹
Voltage rating:	250 V¹
Contact resistance:	20 mO
Wire strip length:	5 mm
Terminal type:	screw
Orientation:	top entry

Notes:

1: UL rating.

This product is listed in:

Connectors & Sockets>Terminal Blocks
