Screw Terminal Block: 5-Pin, 0.1" Pitch, Side Entry (2-Pack)

Skip to the beginning of the images gallery

Screw Terminal Block: 5-Pin, 0.1" Pitch, Side Entry (2-Pack)

Rating:

100% of 100

SKU: POLOLU-2494 Brand: Pololu

These side-entry screw terminal blocks have a pitch of 0.1" (2.54 mm), and can be used as alternatives to standard 0.1" male or female headers on many...

$5.70 AUD, inc GST

$5.18 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

10-25 $4.97 (exc GST)
25+ $4.82 (exc GST)

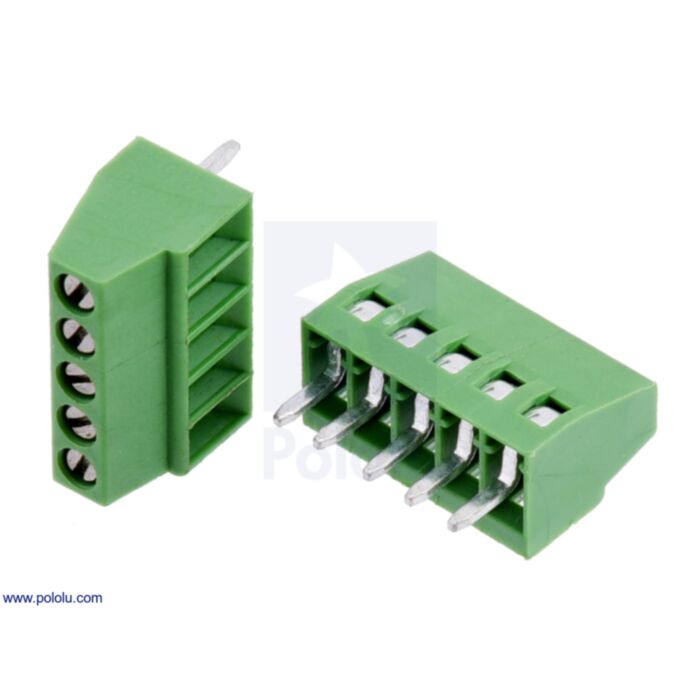

These side-entry terminal blocks have terminals that hold and release wires through the simple adjustment of a small screw, allowing you to easily make temporary connections to a PCB. Since each terminal has a single corresponding pin spaced every 0.1" (2.54 mm), these terminal blocks can be used with prototyping boards and PCB holes intended for standard 0.1" male and female headers (if there is sufficient clearance from nearby components).

0.1" terminal blocks and a male header strip in an Adafruit Perma-Proto prototyping PCB.

0.1" screw terminal block being used with a VNH5019 motor driver carrier in place of the included 0.1"-pitch male header.

Using a 4-pin 0.1" screw terminal block for the motor and motor power connections on the #2136 DRV8801 dual motor driver carrier.

Nine sizes are available, from 2 terminals through 10 terminals.

Note: These terminal blocks do not slide together like Pololu's stackable screw terminal blocks, and they do not fit next to each other on a 0.1" grid, so you will need to get the exact size required for application. Additionally, they do not work well in solderless breadboards (their pins are too short).

Dimensions

The following dimension diagram is for an N-pin version of this screw terminal block:

Screw terminal block: 0.1" pitch, side entry.

Specifications

Voltage rating: 150 V
Current rating: 6 A
Contact resistance: 20 mO
Wire gauge: 26-18 AWG
Wire strip length: 4.5 mm

Other terminal block options

Pololu carry several different sizes and styles of terminal blocks in addition to these 0.1" screw terminal blocks; the picture below shows a side-by-side comparison:

Side-by-side comparison of Pololu's different terminal blocks with a 0.1" male header strip for size reference. From left to right: 0.1" screwless, 0.1" screw, 3.5 mm screw, and 5 mm screw.

Screwless (spring) terminal, available in side- and top-entry orientations with pitches of 0.1" and 0.2":

Alternatives available with variations in these parameter(s): pins spacing orientation Select variant…

Stackable screw terminal, available in side- and top-entry orientations with pitches of 3.5 mm and 5 mm:

Alternatives available with variations in these parameter(s): pins spacing orientation Select variant…

People often buy this product together with:

Screw Terminal Block: 2-Pin, 0.1" Pitch, Side Entry (4-Pack)

Screw Terminal Block: 3-Pin, 0.1" Pitch, Side Entry (3-Pack)

Screw Terminal Block: 4-Pin, 0.1" Pitch, Side Entry (2-Pack)

Dimensions

Pins:	5
Spacing:	0.1 in

General specifications

Wire gauge:	26-18 AWG
Current rating:	6 A
Voltage rating:	150 V
Contact resistance:	20 mO
Wire strip length:	4.5 mm
Terminal type:	screw
Orientation:	side entry
