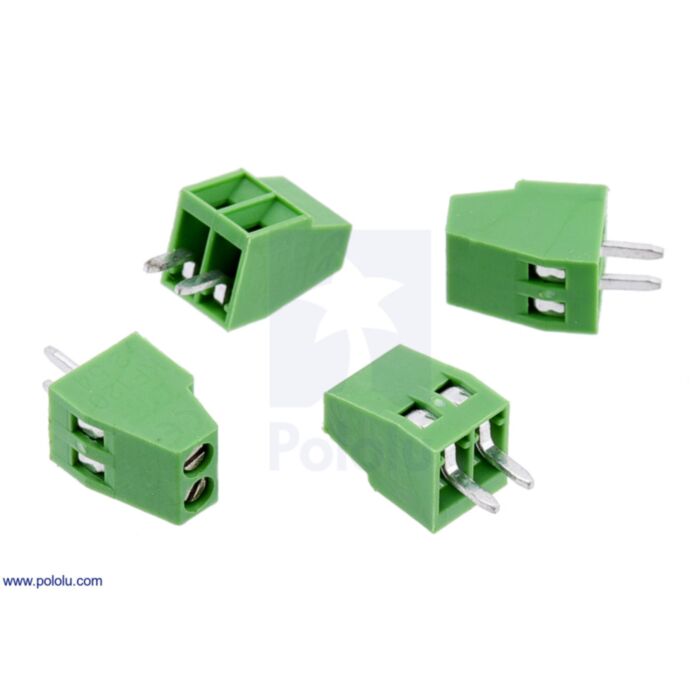

Screw Terminal Block: 2-Pin, 0.1" Pitch, Side Entry (4-Pack)

SKU: POLOLU-2491 Brand: Pololu

These side-entry screw terminal blocks have a pitch of 0.1" (2.54 mm), and can be used as alternatives to standard 0.1" male or female headers on many...

$4.65 AUD, inc GST

$4.23 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

10-25 $4.05 (exc GST)
25+ $3.93 (exc GST)

Recommended Essentials:

Solder Leaded - 15-gram Tube

$3.80

Silicone Hookup Wire Kit (6 Colours, Stranded)

$29.30

These side-entry terminal blocks have terminals that hold and release wires through the simple adjustment of a small screw, allowing you to easily make temporary connections to a PCB. Since each terminal has a single corresponding pin spaced every 0.1" (2.54 mm), these terminal blocks can be used with prototyping boards and PCB holes intended for standard 0.1" male and female headers (if there is sufficient clearance from nearby components).

0.1" screw terminal block being used with a VNH5019 motor driver carrier in place of the included 0.1"-pitch male header.

Nine sizes are available, from 2 terminals through 10 terminals.

Dimensions

The following dimension diagram is for an N-pin version of this screw terminal block:

Specifications

Voltage rating: 150 V
Current rating: 6 A
Contact resistance: 20 mO
Wire gauge: 26-18 AWG
Wire strip length: 4.5 mm

Other terminal block options

Pololu carry several different sizes and styles of terminal blocks in addition to these 0.1" screw terminal blocks; the picture below shows a side-by-side comparison:

Screwless (spring) terminal, available in side- and top-entry orientations with pitches of 0.1" and 0.2":

Alternatives are available with variations in these parameter(s): pins spacing orientation Select variant…

Stackable screw terminal, available in side- and top-entry orientations with pitches of 3.5 mm and 5 mm:

Alternatives are available with variations in these parameter(s): pins spacing orientation Select variant…

Dimensions

Pins:	2
Spacing:	0.1 in

General specifications

Wire gauge:	26-18 AWG
Current rating:	6 A
Voltage rating:	150 V
Contact resistance:	20 mO
Wire strip length:	4.5 mm
Terminal type:	screw
Orientation:	side entry

File downloads

Dimension diagram of N-pin, 0.1"-pitch, side-entry screw terminal block (87k pdf)

This product is listed in:

Connectors & Sockets>Terminal Blocks
