Screwless Terminal Block: 2-Pin, 0.1" Pitch, Side Entry (3-Pack)


$1.88 AUD, inc GST
$1.71 AUD, exc GST

More Views

Screwless Terminal Block: 2-Pin, 0.1" Pitch, Side Entry (3-Pack)
1.88 AUD


$1.88 AUD, inc GST
$1.71 AUD, exc GST

View our maker favourites for this product which are likely to be a great alternative.

In stock, with a short lead time. 116 units dispatch in 4 to 7 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Mon, 1st of Oct with Express Post within Australia.
Shipping Offer
Brand: Pololu


  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

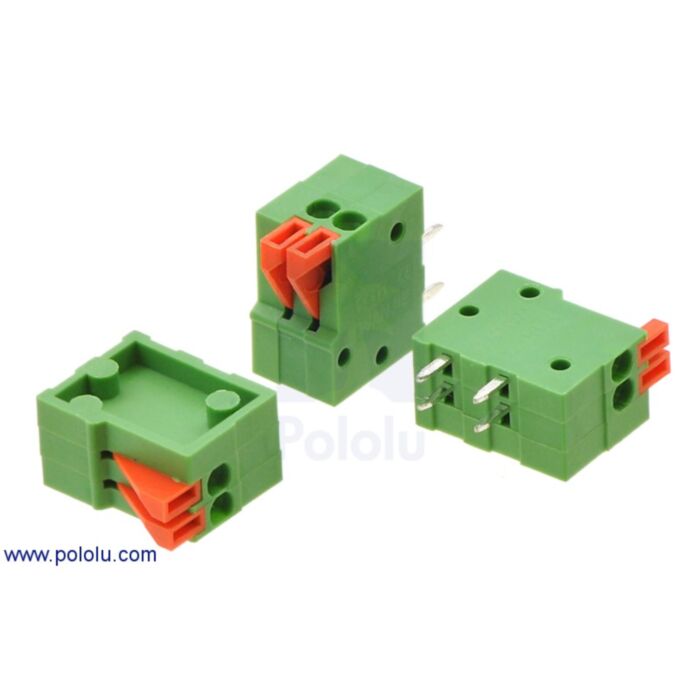

These wire-to-board terminal blocks automatically grip inserted wires, and release when their levers are pressed with a fingernail or small screwdriver. These blocks let you easily make temporary connections to your PCB.

Screwless terminal block: 0.1" pitch, side entry.


  • Voltage rating (UL/IEC): 150/130 V
  • Current rating (UL/IEC): 2/6 A
  • Contact resistance: 20 mΩ
  • Wire gauge: 26-18 AWG
  • Wire strip length: 11 mm

Reconfiguring the terminal blocks

It is possible to reconfigure these terminal blocks by combining them to make larger ones or to removing segments to make them shorter. To combine two terminal blocks, you must first pry off the end cap from one. With the end cap removed, there is nothing to hold the last lever in place, so be careful not to lose it!

Removing the end cap from a 6-pin side-entry screwless terminal block.

Once the end cap is removed, you can line up the newly exposed prongs with the holes on the side of another terminal block and press them together. The following two pictures show combining two 6-pin side-entry screwless terminal blocks into a single 12-pin block:

Attatching another screwless terminal block to the first in place of the now-removed end cap.
Pololu have now combined two 6-pin side-entry screwless terminal blocks into a single 12-pin terminal block.
